SPT-SFP+C(X) 10G 1/3/5/7/10m SFP+ Calbe
SPT-SFP+C(X)
Supports serial data rates up to 10Gbps
Low cost alternative to fiber optic assemblies
Low power consumption
Enhanced EMI suppression
24AWG through 30 AWG cable available
Pull-to-release retractable pin latch design
Networking-servers, routers and hubs
Features
· Support for multi-gigabit data rates up to 10.5Gbps
· Data rates backward compatible to 1Gbps
· Support for 1x, 2x, 4x and 8x Fiber Channel data rates
· Hot-pluggable SFP 20PIN footprint
· I/O Connector designed for high speed differential signal applications
· Improved Pluggable Form Factor(IPF) compliant for enhanced EMI/EMC performance
· Low Power Consumption < 0.5W
· Power Supply: +3.3V
· Compatible to SFP+ MSA
· Temperature Range: 0~ 70 °C
· RoHS Compatible
Applications
· High capacity I/O in Storage Area Networks, Network Attached Storage, and Storage Servers
· Switched fabric I/O such as ultra high bandwidth switches and routers
· Data center cabling infrastructure
· High density connections between networking equipment
Product Description
The SFP+ cable assemblies are high performance, cost effective I/O solutions for 10Gb Ethernet and 10G fiber Channel applications. SFP+ copper modules allow hardware manufactures to achieve high port density, configurability and utilization at a very low cast and reduced power budget. The high speed cable assemblies meet and exceed Gigabit Ethernet and Fiber Channel industry standard requirements for performance and reliability.
Recommended Operating Conditions
|
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
|
Storage Ambient Temperature |
|
-40 |
|
+85 |
°C |
|
Operating Case Temperature |
Tc |
0 |
|
+70 |
°C |
|
Power Supply Voltage |
VCC3 |
3.14 |
3.3 |
3.47 |
V |
|
Power Dissipation |
PD |
|
|
0.5 |
W |
Systems
|
Performance |
10.5 Gbps line speed, full duplex Bit error rate: better than 10E-12 |
|
Media |
Hot-pluggable, industry-standard Small Form-Factor Pluggable (SFP+) copper cable, available as 1m,3m or 5m. |
|
Operating parameters |
Supply voltage: 3.3V Power consumption(per end): max 0.5W |
Supported Length1m, 3m, or 5m typical & customer specific requirements
Pin Descriptions
|
Pin |
Logic |
Symbol |
Name/Description |
Notes |
|
1 |
|
VeeT |
Transmitter Ground |
|
|
2 |
LV-TTL-O |
TX_Fault |
N/A |
1 |
|
3 |
LV-TTL-I |
TX_DIS |
Transmitter Disable |
2 |
|
4 |
LV-TTL-I/O |
SDA |
Tow Wire Serial Data |
|
|
5 |
LV-TTL-I |
SCL |
Tow Wire Serial Clock |
|
|
6 |
|
MOD_DEF0 |
Module present, connect to VeeT |
|
|
7 |
LV-TTL-I |
RS0 |
N/A |
1 |
|
8 |
LV-TTL-O |
LOS |
LOS of Signal |
2 |
|
9 |
LV-TTL-I |
RS1 |
N/A |
1 |
|
10 |
|
VeeR |
Receiver Ground |
|
|
11 |
|
VeeR |
Receiver Ground |
|
|
12 |
CML-O |
RD- |
Receiver Data Inverted |
|
|
13 |
CML-O |
RD+ |
Receiver Data Non-Inverted |
|
|
14 |
|
VeeR |
Receiver Ground |
|
|
15 |
|
VccR |
Receiver Supply 3.3V |
|
|
16 |
|
VccT |
Transmitter Supply 3.3V |
|
|
17 |
|
VeeT |
Transmitter Ground |
|
|
18 |
CML-I |
TD+ |
Transmitter Data Non-Inverted |
|
|
19 |
CML_I |
TD- |
Transmitter Data Inverted |
|
|
20 |
|
VeeT |
Transmitter Ground |
|
1. Signals not supported in SFP+ Copper pulled-down to VeeT with 30K ohms resistor
2. Passive cable assemblies do not support LOS and TX_DIS

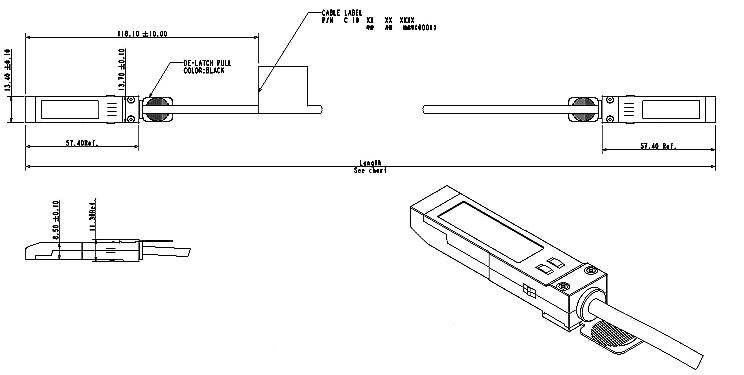

Mechanical Dimensions
SFP Transceiver SPT-SFP+C(X)
Ordering information
|
Part Number |
Product Description |
|
SPT-SFP+C(X) |
SFP+ Direct Attach (10GSFP+Cu), 1m, 3m, 5m, 7m, 10m 0ºC ~ +70ºC |
