10G 1310nm 10km SFP+ Optical Transceiver SPT-SFP+LR

1550nm 1G fiber optic transceiver

Features

  • Optical interface compliant to IEEE 802.3ae 10GBASE-LR
  • Electrical interface compliant to SFF-8431
  • Hot Pluggable
  • 1310nm DFB transmitter, PIN photo-detector
  • Operating case temperature: 0 to 70 °C
  • Low power consumption
  • Applicable for 10km/20km SMF connection
  • All-metal housing for superior EMI performance
  • Advanced firmware allow customer system encryption information to be stored in transceiver
  • Cost effective SFP+ solution, enables higher port densities and greater bandwidth

Applications

  • 10GBASE-LR at 10.3125Gbps
  • 10GBASE-LW at 9.953Gbps
  • Other optical links

Product description

This 1310 nm DFB 10G SFP+ transceiver is designed to transmit and receive optical data over single mode optical fiber for link length 10km/20km.

The SFP+ LR module electrical interface is compliant to SFI electrical specifications. The transmitter input and receiver output impedance is 100 Ohms differential. Data lines are internally AC coupled. The module provides differential termination and reduce differential to common mode conversion for quality signal termination and low EMI. SFI typically operates over 200 mm of improved FR4 material or up to about 150mmof standard FR4 with one connector.

In the transmit direction, the SFP+ transceiver module receives a 10.3125 Gb/s electrical signal (signaling rate) from the host board Asic/SerDes and converts the data to an optical signal via the Laser Driver that controls the Laser diode in the Transmitter Optical Sub-Assembly (TOSA). An open collector compatible Transmit Disable (Tx_Dis) is provided. A logic “1,” or no connection on this pin will disable the laser from transmitting. A logic “0” on this pin provides normal operation. The transmitter has an internal automatic power control loop (APC) to ensure constant optical power output across supply voltage and temperature variations. An open collector compatible Transmit Fault (TFault) is provided. TX_Fault is a module output contact that when high, indicates that the module transmitter has detected a fault condition related to laser operation or safety. The TX_Fault output contact is an open drain/collector and shall be pulled up to the Vcc_Host in the host with a resistor in the range 4.7-10 kΩ. TX_Disable is a module input contact. When TX_Disable is asserted high or left open, the SFP+ module transmitter output shall be turned off. This contact shall be pulled up to VccT with a 4.7 kΩ to 10 kΩ resistor

The receiver converts 10Gbit/s serial optical data into serial PECL/CML electrical data. An open collector compatible Loss of Signal is provided. Rx_LOS when high indicates an optical signal level below that specified in the relevant standard. The Rx_LOS contact is an open drain/collector output and shall be pulled up to Vcc_Host in the host with a resistor in the range 4.7-10 kΩ, or with an active termination. Power supply filtering is recommended for both the transmitter and receiver. The Rx_LOS signal is intended as a preliminary indication to the system in which the SFP+ is installed that the received signal strength is below the specified range. Such an indication typically points to non-installed cables, broken cables, or a disabled, failing or a powered off transmitter at the far end of the cable.

The 3rd functional capability of the SFP+ module is the 2 wire serial, I2C, interface. I2C is used for serial ID, digital diagnostics, and module control functions. The enhanced digital diagnostics monitoring interface allows real time access to the device allowing monitor of received optical power, laser bias current, laser optical output power, etc.

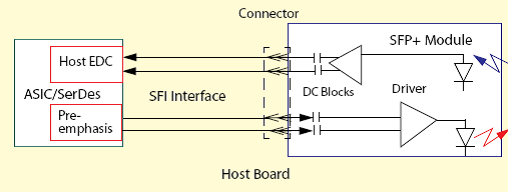

Figure 1: Interface to Host

Pin definition

The SFP+ modules are hot-pluggable. Hot pluggable refers to plugging in or unplugging a module while the host board is powered. The SFP+ host connector is a 0.8 mm pitch 20 position right angle improved connector specified by SFF-8083, or stacked connector with equivalent with equivalent electrical performance. Host PCB contact assignment is shown in Figure 2 and contact definitions are given in Table 2. SFP+ module contacts mates with the host in the order of ground, power, followed by signal as illustrated by Figure 3 and the contact sequence order listed in Table 2.

Figure 2: Interface to Host PCB





Figure 3: Module Contact Assignment

Table 2: SFP+ Module PIN Definition

Absolute maximum rating

These values represent the damage threshold of the module. Stress in excess of any of the individual Absolute Maximum Ratings can cause immediate catastrophic damage to the module even if all other parameters are within Recommended Operating Conditions.



Parameters

Symbol

Min.

Max.

Unit

Power Supply Voltage

VCC

0

+3.6

V

Storage Temperature

Tc

-40

+85

°C

Operating Case Temperature

Tc

0

+70

°C

Relative Humidity

RH

5

95

%

RX Input Average Power

Pmax

-

0

dBm



Table 3: Absolute Maximum Rating

Recommended operating environment

Recommended Operating Environment specifies parameters for which the electrical and optical characteristics hold unless otherwise noted.

Parameter

Symbol

Min.

Typical

Max

Unit

Power Supply Voltage

VCC

3.135

3.300

3.465

V

Operating Case Temperature

TC

0

25

70

°C



Table 4: Recommended Operating Environment

Optical characteristics

The following optical characteristics are defined over the Recommended Operating Environment unless otherwise specified.





Unit

Values

Operating Reach

m

10K

Transmit

Center wavelength (range)

nm

1260 -1355

Side Mode Suppression Ratio (min)

dB

30

Launched power

– maximum

dBm

+0.5

– minimum

dBm

-8.2 Notes1

  • OMA

dBm

-5.2

  • OMA-TDP (min)

dBm

-6.2

Transmitter and dispersion penalty

dB

0 Notes4

Average launch power of OFF transmitter (max)

dBm

-30

Extinction ratio (min)

dB

3.5 Notes2

RIN12 OMA (max)

dB/Hz

-128

Optical Return Loss Tolerance (min)

dB

12

Receiver

Center wavelength (range)

nm

1260-1355

Receive overload (max) in average power1

dBm

0.5

Receive sensitivity (min) in average power1

dBm

-14.4 Notes3 (10km)

dBm

-13.4 Notes3 (20km)

Receiver sensitivity (max) in OMA (footnote 2)

dBm

-12.6 Notes3 (10km)

dBm

-11.6 Notes3 (20km)

Receiver Reflectance (max)

dB

-12

Stressed receiver sensitivity (max) in OMA2

dBm

-10.3

Vertical eye closure penalty (min)3

dB

2.2

Stressed eye jitter (min)2

UIp-p

0.7

Receive electrical 3dB upper cutoff frequency (max)

GHz

12.3

Receiver power (damage, Max)

dBm

1.5

Notes:

  1. The optical power is launched into SMF
  2. Measured with a PRBS 231-1 test pattern at 10.3125Gbps
  3. Measured with a PRBS 231-1 test pattern at 10.3125Gbps BER≤10-12

4. In G.652 and G.655(NDSF)



Table 5: Optical Characteristics

Electrical characteristics

The following electrical characteristics are defined over the Recommended Operating Environment unless otherwise specified.

Parameter

Symbol

Min.

Typical

Max

Unit

Notes

Data Rate



-

10.3125

-

Gbps



Power Consumption



-

1200

1500

mW



Transmitter

Single Ended Output Voltage Tolerance



-0.3

-

4.0

V



C common mode voltage tolerance



15

-

-

mV



Tx Input Diff Voltage

VI

400



1600

mV



Tx Fault

VoL

-0.3



0.4

V

At 0.7mA

Data Dependent Input Jitter

DDJ





0.10

UI



Data Input Total Jitter

TJ





0.28

UI



Receiver

Single Ended Output Voltage Tolerance



-0.3

-

4.0

V



Rx Output Diff Voltage

Vo

300



850

mV



Rx Output Rise and Fall Time

Tr/Tf

30





ps

20% to 80%

Total Jitter

TJ





0.70

UI



Deterministic Jitter

DJ





0.42

UI





Table 6: Electrical Characteristics

Control and status I/O timing characteristics

Timing characteristics of control and status I/O are included in Table 7, which is also defined in SFF-8431.

Table 7: Timing Characteristics

Mechanical



Table 8: Key Mechanical Dimensions

ESD

This transceiver is specified as ESD threshold 1kV for high speed pins and 2kV for all other electrical input pins, tested per MIL-STD-883, Method 3015.4 /JESD22-A114-A (HBM). However, normal ESD precautions are still required during the handling of this module. This transceiver is shipped in ESD protective packaging. It should be removed from the packaging and handled only in an ESD protected environment.

LASER SAFTY

This is a Class 1 Laser Product according to IEC 60825-1:1993:+A1:1997+A2:2001. This product complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated (July 26, 2001)
