How to choose the fiber jumpers when using optical module

Fiber jumpers (also known as fiber optic connectors) , which is the access fiber optical connector module , also have a good variety, and are not interoperable with each other. Here we introduce the optical fiber jumper classification module how to choose fiber jumpers.General Fiber jumpers classification and is summarized as follows: ① FC fiber optic patch: External strengthen way is to use a metal sleeve, fastening means for the turnbuckle. Generally adopt ODF side (on the patch panel with maximum) ② SC fiber optic jumper: Connect connector GBIC optical modules, its rectangular casing, fastening methods is the use of the plug pin latch type, do not need to rotate. ③ ST fiber optic jumpers (up to use the router switches) : commonly used in fiber optic patch panels, rounded shell, fastening means for the turnbuckle. (for 10Base-F connector, the connector is usually used in the ST type fiber optic patch panel.) ④ LC type fiber jumper: Connect the connector SFP module, which uses easy to operate modular jack (RJ) The latch mechanism is made. (routers used) ⑤ MT-RJ fiber optic jumpers: Transceiver square fiber optic connectors, one pair of fiber transceiver two. How to choose the fiber jumpers fiber optic modules: The light module in general is hot-swappable GBIC optical interface used mostly for SC or ST type; SFP, SFP +, XFP optical modules used LC type optical fiber. X2, XENPAK optical fiber modules for LC type. Fiber used: single-mode: L -wavelength single-mode long-haul LH 1310 wavelength multimode 1310nm, 1550nm: SM wavelength 850 SX / LH means you can use single-mode or multimode fiber.   Summary: The right choice of fiber jumper will determine the quality of the using optical module, so be sure need to interface type fiber optic device to select the corresponding fiber jumpers. To ensure the normal and efficient operation of the optical fiber network!

Recommended Products:

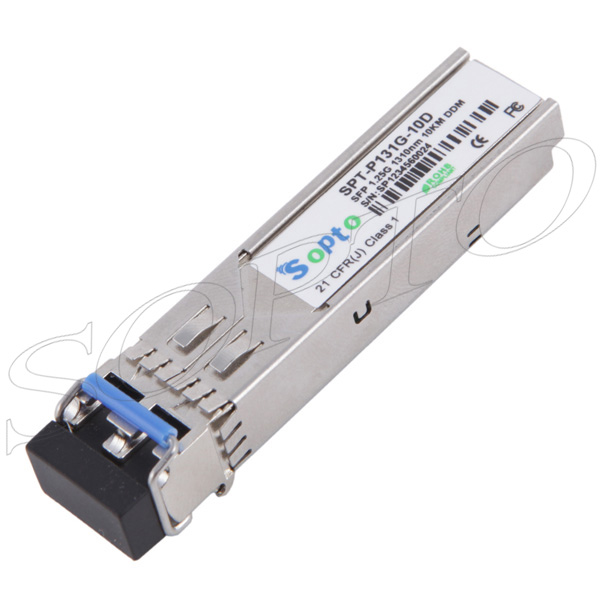

1.25Gbps SFP Optical Transceiver
