10G XENPAK 1550 nm 10GBASE-ER Transceiver SPT-XENPAK-ER

1550nm 1G fiber optic transceiver

Manufacturer/Supplier: SOPTO

The models: SPT-XENPAK-ER

Price: Request for quotation from customer services



Features

XENPAK MSA Compliant

70-PIN connector

SC duplex receptacle package

Cooled EA-DFB/PIN-PD

Power supply: +5.0 V, +3.3 V, APS:+1.2 V

Power Dissipation 4W Maximum



0ºC to 70ºC Operating Case Temperature

Digital Diagnostic Monitoring

Management and control with MDIO 2-wire bus

XAUI electrical interface 4 x 3.125 Gb/s Ethernet

≤40km ER(Extended Range)10GBE

RoHS compliant and lead free



Applications

10 Gb/s Ethernet transmission systems

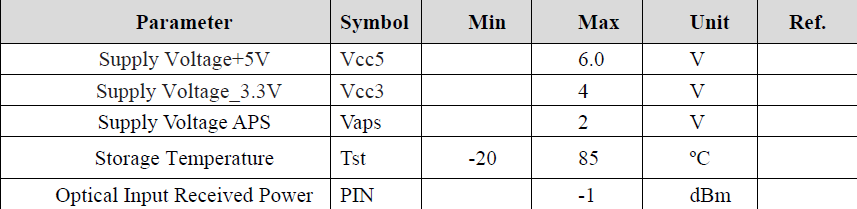

Absolute Maximum Ratings



Absolute Maximum Ratings

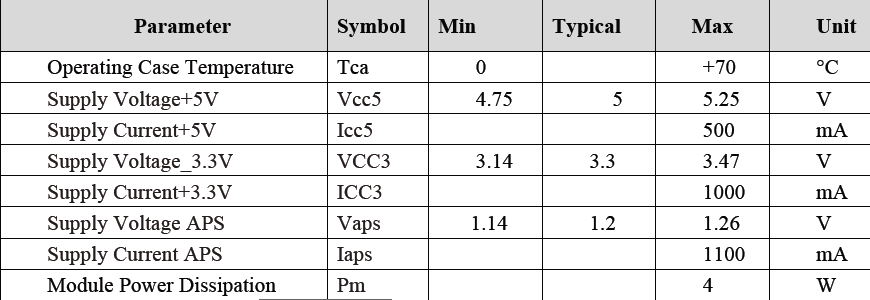

Operating Conditions



Operating Conditions

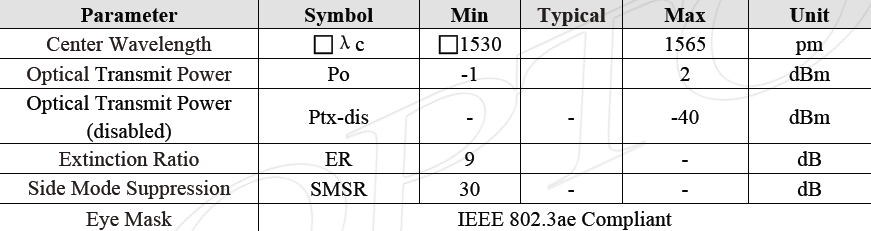

Transmitter Specifications – Optical



Transmitter Specifications – Optical

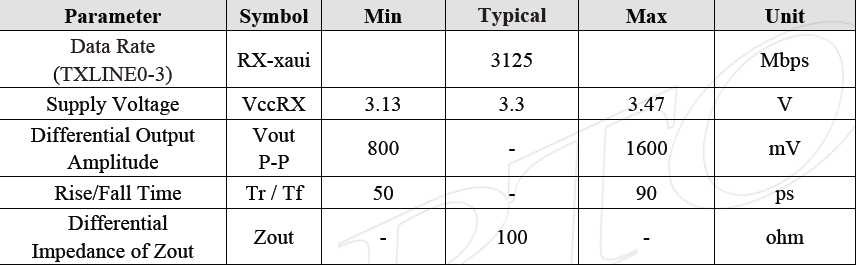

Receiver Specifications – Electrical



Receiver Specifications – Electrical



Functional Diagram of Typical XENPAK Style Transceiver



Functional Diagram of Typical XENPAK Style Transceiver
