2.125G 1310nm 10km SM DDM SFP Transceiver Module SPT-P132G-10D

1550nm 1G fiber optic transceiver

Features

Internal Calibration or External Calibration

  • Up to 2.125Gb/s bi-directional data links
  • 1310nm FP laser and PIN photodetector for 10km transmission
  • Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
  • Digital Diagnostic Monitoring:
  • Compatible with RoHS
  • +3.3V single power supply
  • Operating case temperature:
  • Standard : 0 to +70°C Industrial : -40 to +85°C

Applications

  • 2X Fiber Channel
  • Switch to Switch interface
  • Switched backplane applications
  • Router/Server interface
  • Other optical transmission systems

Description

The SFP transceivers are high performance, cost effective modules supporting dual data-rate of 2.125Gbps and 10km transmission distance with SMF.

The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

Absolute Maximum Ratings

Table 1 - Absolute Maximum Ratings



Parameter

Symbol

Min

Max

Unit

Supply Voltage

Vcc

-0.5

4.5

V

Storage Temperature

Ts

-40

+85

°C

Operating Humidity

-

5

85

%



Recommended Operating Conditions

Table 2 - Recommended Operating Conditions



Parameter

Symbol

Min

Typical

Max

Unit

Operating Case Temperature

Standard

Tc

0



+70

°C

Industrial

-40



+85

°C

Power Supply Voltage

Vcc

3.13

3.3

3.47

V

Power Supply Current

Icc





300

mA

Data Rate





2.125



Gbps



Optical and Electrical Characteristics

SPT-P132G-10D: (FP and PIN, 1310nm, 10km Reach)

Table 3 - Optical and Electrical Characteristics



Parameter

Symbol

Min

Typical

Max

Unit

Notes

Transmitter

Centre Wavelength

λc

1260

1310

1360

nm



Spectral Width (RMS)

σ





4

nm



Average Output Power

Pout

-10



-3

dBm

1

Extinction Ratio

ER

9





dB



Optical Rise/Fall Time (20%~80%)

tr/tf





0.16

ns



Data Input Swing Differential

VIN

400



1800

mV

2

Input Differential Impedance

ZIN

90

100

110

Ω



TX Disable

Disable



2.0



Vcc

V



Enable



0



0.8

V



TX Fault

Fault



2.0



Vcc

V



Normal



0



0.8

V



Receiver

Centre Wavelength

λc

1260



1580

nm



Receiver Sensitivity







-18

dBm

3

Receiver Overload



-3





dBm

3

LOS De-Assert

LOSD





-20

dBm



LOS Assert

LOSA

-30





dBm



LOS Hysteresis



1



4

dB



Data Output Swing Differential

Vout

370



1800

mV

4

LOS

High

2.0



Vcc

V



Low





0.8

V





Notes:

1. The optical power is launched into SMF.

2. PECL input, internally AC-coupled and terminated.

3. Measured with a PRBS 27-1 test pattern @2125Mbps, BER ≤1×10-12.

4. Internally AC-coupled.

Timing and Electrical

Table 4 - Timing and Electrical



Parameter

Symbol

Min

Typical

Max

Unit

Tx Disable Negate Time

t_on





1

ms

Tx Disable Assert Time

t_off





10

µs

Time To Initialize, including Reset of Tx Fault

t_init





300

ms

Tx Fault Assert Time

t_fault





100

µs

Tx Disable To Reset

t_reset

10





µs

LOS Assert Time

t_loss_on





100

µs

LOS De-assert Time

t_loss_off





100

µs

Serial ID Clock Rate

f_serial_clock





400

KHz

MOD_DEF (0:2)-High

VH

2



Vcc

V

MOD_DEF (0:2)-Low

VL





0.8

V





Diagnostics

Table 5 – Diagnostics Specification



Parameter

Range

Unit

Accuracy

Calibration

Temperature

0 to +70

°C

±3°C

Internal / External

-40 to +85

Voltage

3.0 to 3.6

V

±3%

Internal / External

Bias Current

0 to 100

mA

±10%

Internal / External

TX Power

-10 to -3

dBm

±3dB

Internal / External

RX Power

-23 to -3

dBm

±3dB

Internal / External





Digital Diagnostic Memory Map

The transceivers provide serial ID memory contents and diagnostic information about the present operating conditions by the 2-wire serial interface (SCL, SDA).

The diagnostic information with internal calibration or external calibration all are implemented, including received power monitoring, transmitted power monitoring, bias current monitoring, supply voltage monitoring and temperature monitoring.



The digital diagnostic memory map specific data field defines as following.



Pin Definitions

Pin Diagram



Pin Descriptions



Pin

Signal Name

Description

Plug Seq.

Notes

1

VEET

Transmitter Ground

1



2

TX FAULT

Transmitter Fault Indication

3

Note 1

3

TX DISABLE

Transmitter Disable

3

Note 2

4

MOD_DEF(2)

SDA Serial Data Signal

3

Note 3

5

MOD_DEF(1)

SCL Serial Clock Signal

3

Note 3

6

MOD_DEF(0)

TTL Low

3

Note 3

7

Rate Select

Not Connected

3



8

LOS

Loss of Signal

3

Note 4

9

VEER

Receiver ground

1



10

VEER

Receiver ground

1



11

VEER

Receiver ground

1



12

RD-

Inv. Received Data Out

3

Note 5

13

RD+

Received Data Out

3

Note 5

14

VEER

Receiver ground

1



15

VCCR

Receiver Power Supply

2



16

VCCT

Transmitter Power Supply

2



17

VEET

Transmitter Ground

1



18

TD+

Transmit Data In

3

Note 6

19

TD-

Inv. Transmit Data In

3

Note 6

20

VEET

Transmitter Ground

1



Notes:

Plug Seq.: Pin engagement sequence during hot plugging.

1) TX Fault is an open collector output, which should be pulled up with a 4.7k~10kΩ resistor on the host board to a voltage between 2.0V and Vcc+0.3V. Logic 0 indicates normal operation; Logic 1 indicates a laser fault of some kind. In the low state, the output will be pulled to less than 0.8V.

2) TX Disable is an input that is used to shut down the transmitter optical output. It is pulled up within the module with a 4.7k~10kΩ resistor. Its states are:

Low (0 to 0.8V): Transmitter on

(>0.8V, < 2.0V): Undefined

High (2.0 to 3.465V): Transmitter Disabled

Open: Transmitter Disabled

3) Mod-Def 0,1,2. These are the module definition pins. They should be pulled up with a 4.7k~10kΩ resistor on the host board. The pull-up voltage shall be VccT or VccR.

Mod-Def 0 is grounded by the module to indicate that the module is present

Mod-Def 1 is the clock line of two wire serial interface for serial ID

Mod-Def 2 is the data line of two wire serial interface for serial ID

4) LOS is an open collector output, which should be pulled up with a 4.7k~10kΩ resistor. Pull up voltage between 2.0V and Vcc+0.3V. Logic 1 indicates loss of signal; Logic 0 indicates normal operation. In the low state, the output will be pulled to less than 0.8V.

5) RD-/+: These are the differential receiver outputs. They are internally AC-coupled 100 differential lines which should be terminated with 100Ω (differential) at the user SERDES.

6) TD-/+: These are the differential transmitter inputs. They are internally AC-coupled, differential lines with 100Ω differential termination inside the module.



Recommended Interface Circuit

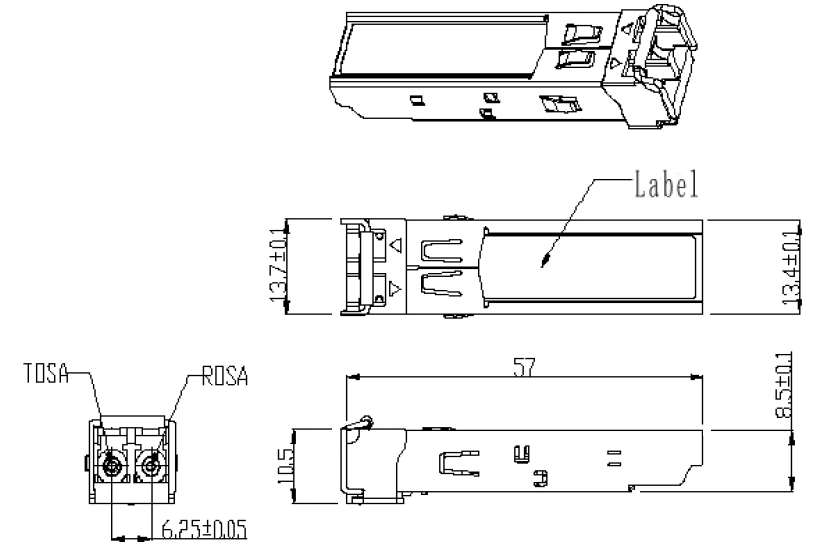

Mechanical Dimensions



Ordering information

Part Number

Product Description

SPT-P132G-10

1310nm, 2.125Gbps, 10km, 0ºC ~ +70ºC

SPT-P132G-10D

1310nm, 2.125Gbps, 10km, 0ºC ~ +70ºC, With Digital Diagnostic Monitoring

SPT-P132G-10N

1310nm, 2.125Gbps, 10km, -40ºC ~ +85ºC

SPT-P132G-10ND

1310nm, 2.125Gbps, 10km, -40ºC ~ +85ºC, With Digital Diagnostic Monitoring
