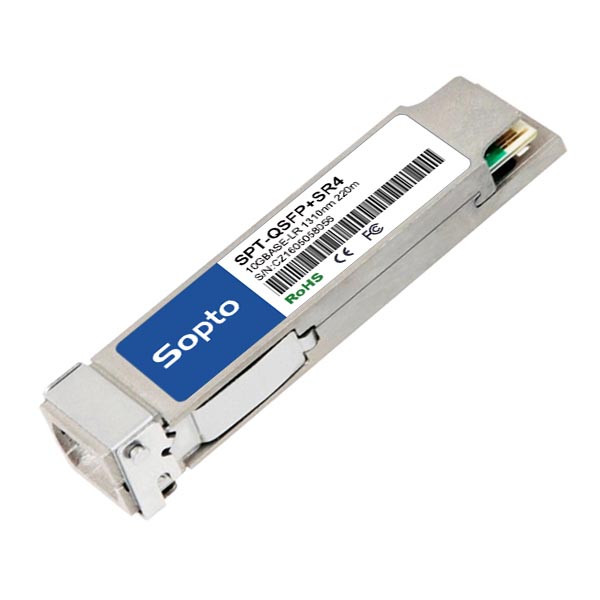

40G 150m QSFP+ Transceiver

3rd-Party Compatible 40G BASE-SR4 QSFP+ Transceiver

40G 150m QSFP+ is a new Multi-Source Agreement (MSA), supporting link length of 100m on OM3 MMF and 150m on OM4 MMF. It primarily enables high-bandwidth 40G optical links over parallel fiber terminated with MPO/MTP multimode fiber connectors.



Sopto’s SPT-QSFP+-SR4 transceiver is well suited for Infiniband and 40GBASE-SR4 applications. It integrates four data lanes in each direction with 40Gbps bandwidth. Each lane can operate at 10.3125Gbpsup to 100 m using OM3 fiber or 150 m using OM4 fiber. These 40GBASE-SR4 QSFP+ modules are designed to operate in wavelength of 850nm. The SPT-QSFP+-SR4 transceiver modules are 100% compatible with your branding devices like switches, routers and data center equipment.


Tips: SOPTO supplies (Original Equipment Manufacture) OEM Service and Third-Party Compatible Fiber Optic Transceivers.

Compatible Brands

  • Cisco

  • HUAWEI

  • Juniper

  • HP

  • Intel

  • DELL

  • Other mainstream brands

40G 150m QSFP+  Order information

Part No. Parameters Laser Temperature Get Price
SOPTO 40G 150m QSFP+ Transceiver
SPT-QSFP+-SR4 QSFP+ SR  40G  100m on OM3, 150m on OM4  850nm  Multimode Mode Fiber (MMF)   MPO Connector  VCSEL 0~70°C; -40~85°C Email

40G 150m QSFP+ Features

  • Hot Pluggable QSFP form factor

  • Transmission data rate up to 10.3Gbit/s per channel

  • 4 channels 850nm VCSEL array

  • 4 channels PIN photo detector array

  • Up to 100m on OM3 Multimode Fiber (MMF)

  • Up to 150m on OM4 MMF

  • Four-channel full-duplex transceiver modules

  • Low power consumption <1.5W

  • Housing isolated from connector ground

  • Single MPO connector receptacle

  • 3.3V power supply voltage

  • RoHS 6 compliant

  • Built-in digital diagnostic functions

  • Operating case temperature: 0 to 70

40G 150m QSFP+ Transceiver

40G 150m QSFP+ Application

  • 10GBASE-SR applications

  • 40GBASE-SR4 applications

  • Dotcom/Telecom switch & router connections

  • Data Aggregation and Backplane Applications

  • Proprietary Protocol and Density Applications

  • Server-Server Clusters, Super-computing interconnections

  • Interconnects rack-to-rack, shelf-to-shelf, board-to-board, board-to-optical backplane

  • InfiniBand SDR, DDR and QDR applications

Superiority

  • low price
  • 1-3 Years Warranty
  • Standarized Design
  • High-quality raw materials
  • A Wide range of selection and large stock
  • Rigorous and comprehensive product testing
  • Widely compatible with all brand equipment

Third Party Compatible Service

The SFP transceiver is not standardized by any official standards body, but rather is specified by a multi-source agreement (MSA) among competing manufacturers.


As a practical matter, some networking equipment manufacturers engage in vendor lock-in practices whereby they deliberately break compatibility with "generic" SFPs by adding a check in the device's firmware that will enable only the vendor's own modules.


For example, in 2003 during a routine Internet Operating System (IOS) update on their Catalyst line of switches, Cisco added a feature that would cause the switch to reject optical modules that were not deemed ‘Cisco brand.


Sopto is a professional manufacture and supplier of fiber optic transceivers. All our optical transceivers are tested strictly before delivery and fully compatible with major bands’ equipment.


Sopto provides GBIC, SFP, SFP+, X2, XENPAK, XFP and QSFP+ transceivers, supporting different data rate such as 1G, 2G, 4G, 8G, 10G, 40G, etc. These transceivers can be operated with network switches, routers, firewalls, digital return transceivers and other devices of all leading vendors, such as Cisco, HUAWEI, HP, Juniper, H3C, 3COM, D-link, etc.


As a third party vendor, Sopto can supply transceiver modules with good quality and low price for our customers.

CISCO
CISCO
ADTRAN
Huawei
H3C
H3C
HP
HP
Allied Telesis
Allied Telesis
Alcatel-Lucent
Alcatel-Lucent
Foundry
Foundry
Force10
Force10
Juniper
Juniper
Intel
Intel
Brocade
Brocade
Emulex
Blade
D-Link
D-Link
Linksys
Linksys
Marconi
Marconi
McAfee
McAfee
Netgear
Netgear
Ruijie
Ruijie
SMC
SMC
Emulex
Emulex
Q-logic
Q-logic
SUN
SUN
Feixun
Feixun

Fiber Optic Transceiver Customized Example-OEM

What is OEM?

OEM stands for Original Equipment Manufacturer, refers to companies that make products for others to repackage and sell. OEMs are manufactures who resell another company’s products under their own name and branding.



Sopto Provides OEM Service

Sopto can provide OEM service for our customers. All our optical transceivers are produced by our own factory and 100% compatible with Cisco, HUAWEI, HP and other brands’ devices. We also provide customize optical transceivers to fit your specific requirements with high quality and low price. If you need OEM service, please give priority to our products. For more information, please contact our sales staff on-line by e-mail or live-chat. Please call us at 0086-755-36946668 or email to sales@sopto.com


Customized Example
Logo
Model
SN Code
Compatible Brand
Package
soptologo SPT-XXXX-XX
SPXXXXXXXXX
CISCO Package with logo
Sopto provides customized service. Tell us your requirement on logo,model,SN code,compatible brand and package.
