80KM SFP+ CWDM Optical Transceiver SPT-PC(47-61)TG-80D

SPT-PC(47-61)TG-80D
80KM SFP+ CWDM Optical Transceiver
Features
- Compliant with SFF-8431 and IEE802.3ae
- Data rate selectable ≤4.25Gbps or 9.95Gbps to 10.3Gbps bit rates
- Cooled EML transmitter and APD receiver
- Wavelength selectable to ITU-T standards coveringCWDM grid wavelengths
- 1470nm~1570nm link length up to 80km (1600ps/nm)
- 1590nm~1610nm link length up to 70km (1400ps/nm)
- Low Power Dissipation 2W Maximum
- -5ºC to 70ºC Operating Case Temperature
- Single 3.3V power supply
- Diagnostic Performance Monitoring of module temperature, supply voltages, laser bias current, transmit optical power, receive optical power
- RoHS compliant and lead free
Applications
- 10GBASE-ZR
Description
SOPTO’S SFP+ZR CWDM Transceiver is designed for 10GBASE-ZR applications. The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a APD photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, and received optical power and transceiver supply voltage.
Absolute Maximum Ratings
Parameter |
Symbol |
Min |
Max |
Unit |
Supply Voltage |
Vcc |
-0.5 |
3.8 |
V |
Storage Temperature |
Tst |
-40 |
85 |
ºC |
Relative Humidity |
Rh |
0 |
85 |
% |
Operating Conditions
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
Supply Voltage |
Vcc |
3.13 |
3.3 |
3.47 |
V |
Supply current |
Icc |
|
420 |
610 |
mA |
Operating Case temperature |
Tca |
-5 |
- |
70 |
ºC |
Module Power Dissipation |
Pm |
- |
1.4 |
2 |
W |
Notes:
[1] Supply current is shared between VCCTX and VCCRX.
[2] In-rush is defined as current level above steady state current requirements.
Transmitter Specifications – Optical
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
Center Wavelength |
ëc |
1464.5 |
|
1617.5 |
nm |
Center wavelength stability |
ÄëD |
−6.5 |
ëc |
6.5 |
nm |
Optical Average Power |
Po |
0 |
- |
+3 |
dBm |
Optical OMA Power |
Pom |
-2.1 |
|
|
dBm |
Side Mode Suppression Ratio |
SMSR |
30 |
- |
- |
dB |
Optical Transmit Power (disabled) |
PTX_DISABLE |
- |
- |
-30 |
dBm |
Extinction Ratio |
ER |
8.2 |
|
- |
dB |
RIN21OMA [1] |
|
|
|
-128 |
dB/Hz |
Optical Return Loss Tolerance |
|
|
|
21 |
dB |
Notes:
[1] RIN measurement is made with a return loss at 21 dB.
Transmitter Specifications – Electrical
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
Data Rate |
Mra |
- |
10.3 |
11.3 |
Gbps |
Input differential impedance |
Rim |
- |
100 |
- |
Ω |
Differential data Input |
VtxDIFF |
120 |
- |
850 |
mV |
Transmit Disable Voltage |
VD |
2.0 |
- |
Vcc3+0.3 |
V |
Transmit Enable Voltage |
Ven |
0 |
- |
+0.8 |
V |
Transmit Disable Assert Time |
Vn |
- |
- |
100 |
us |
Receiver Specifications – Optical
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
Input Operating Wavelength |
λ |
1260 |
- |
1620 |
nm |
Average receive power |
|
- |
- |
-1.0 |
dBm |
Receiver sensitivity |
|
- |
- |
-24 |
dBm |
Maximum Input Power |
RX-overload |
- |
- |
-7 |
dBm |
Reflectance |
Rrx |
- |
- |
-27 |
dB |
Loss of Signal Asserted |
|
-35 |
- |
- |
dBm |
LOS De-Asserted |
|
- |
- |
-30 |
dBm |
LOS Hysteresis |
|
0.5 |
- |
- |
dB |
Receiver Specifications – Electrical
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
Data Rate |
Mra |
- |
10.3 |
11.3 |
Gbps |
Differential Output Swing |
Vout P-P |
350 |
- |
850 |
mV |
Rise/Fall Time |
Tr / Tf |
24 |
- |
- |
ps |
Loss of Signal –Asserted |
VOH |
2 |
- |
Vcc3+0.3- |
V |
Loss of Signal –Negated |
VOL |
0 |
- |
+0.4 |
V |
Figure1.Electrical Pin-out Details
Pin Descriptions
Pin |
Symbol |
Name/Description |
1 |
VEET [1] |
Transmitter Ground |
2 |
Tx_FAULT [2] |
Transmitter Fault |
3 |
Tx_DIS [3] |
Transmitter Disable. Laser output disabled on high or open |
4 |
SDA [2] |
2-wire Serial Interface Data Line |
5 |
SCL [2] |
2-wire Serial Interface Clock Line |
6 |
MOD_ABS [4] |
Module Absent. Grounded within the module |
7 |
RS0 [5] |
RS0 for Rate Select: Open or Low = Module supports ≤4.25Gbps High = Module supports 9.95 Gb/s to 10.3125 Gb/s |
8 |
RX_LOS [2] |
Loss of Signal indication. Logic 0 indicates normal operation |
9 |
RS1 [5] |
No connection required |
10 |
VEER [1] |
Receiver Ground |
11 |
VEER [1] |
Receiver Ground |
12 |
RD- |
Receiver Inverted DATA out. AC Coupled |
13 |
RD+ |
Receiver DATA out. AC Coupled |
14 |
VEER [1] |
Receiver Ground |
15 |
VCCR |
Receiver Power Supply |
16 |
VCCT |
Transmitter Power Supply |
17 |
VEET [1] |
Transmitter Ground |
18 |
TD+ |
Transmitter DATA in. AC Coupled |
19 |
TD- |
Transmitter Inverted DATA in. AC Coupled |
20 |
VEET [1] |
Transmitter Ground |
Notes:
[1] Module circuit ground is isolated from module chassis ground within the module.
[2].should be pulled up with 4.7k – 10k ohms on host board to a voltage between 3.15Vand 3.6V.
[3]Tx_Disable is an input contact with a 4.7 kΩ to 10 kΩ pullup to VccT inside the module.
[4]Mod_ABS is connected to VeeT or VeeR in the SFP+ module. The host may pull this contact up to Vcc_Host with a resistor
in the range 4.7 kΩ to10 kΩ.Mod_ABS is asserted “High” when the SFP+ module is physically absent from a host slot.
[5] RS0 and RS1 are module inputs and are pulled low to VeeT with > 30 kΩ resistors in the module.
Figure2. Host Board Power Supply Filters Circuit
Figure3. Host-Module Interface

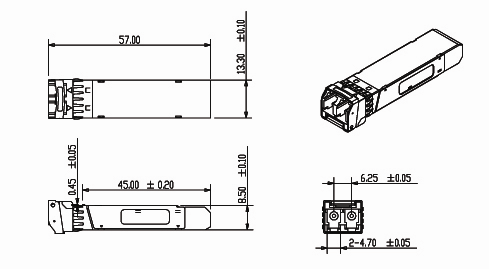

Figure4. Mechanical Specifications
