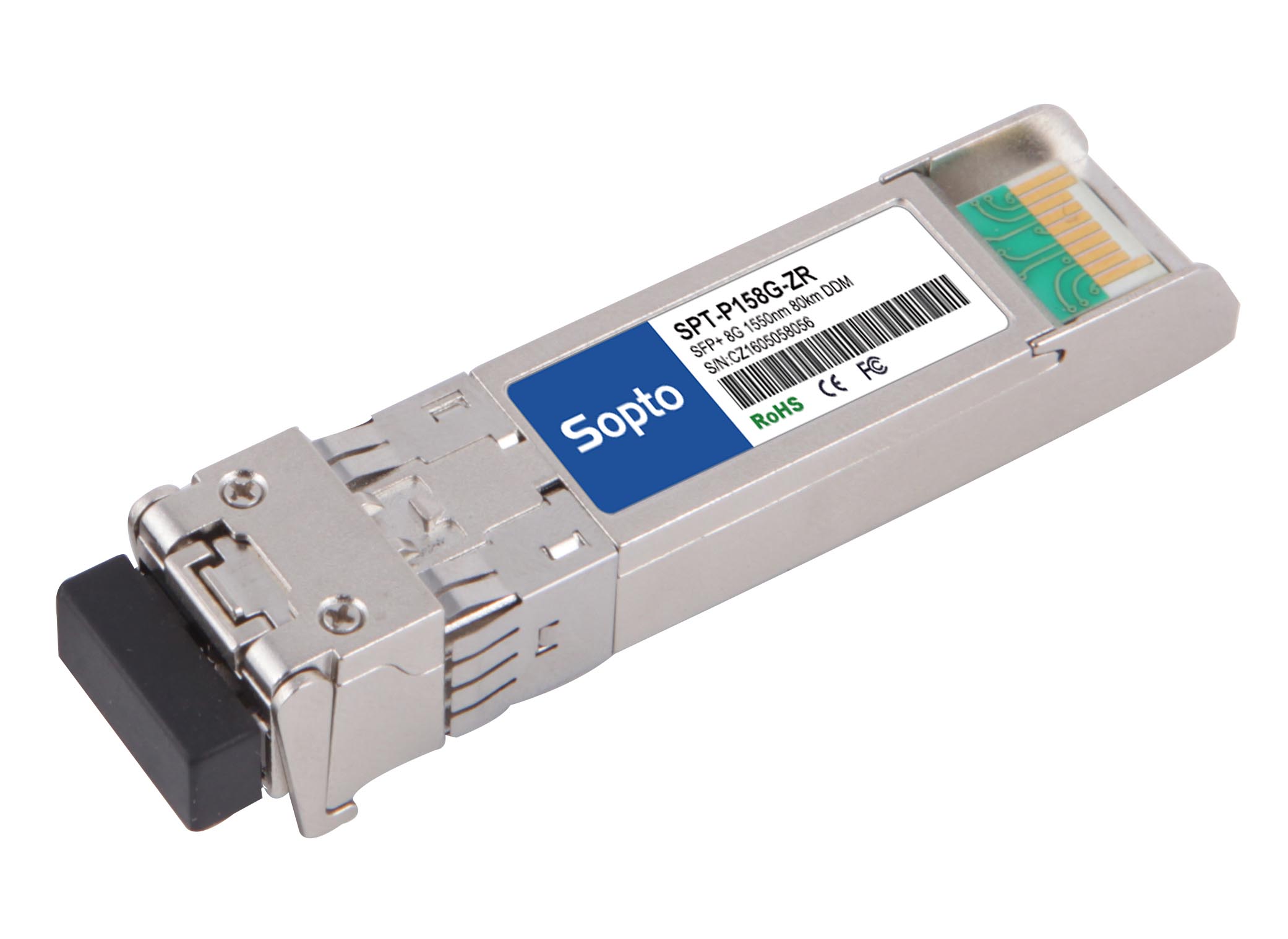

SPT-P158G-ZR

Parmeters

• Form Factor : SFP+
• Manufacture : Sopto
• Data Rate : 8.5G
• Place of Origin : Shenzhen, China
• Transmission distance : 80km
• Fiber Mode : Single Mode Fiber (SMF)
• Wavelength : 1550nm
• Types of Interface : LC
• Types of Laser : EML
• Operating Temperature : Standard: -5~70°C
• Modes of Communications : Duplex
• Power Supply : + 3.3V Single power supply
• Model : SPT-P158G-ZR
• Operating Humidity : 0%~90% RH no condensing
• Extinction Ratio : 3.5~6dB
• Receiver Sensitivity : -24~-11.1dBm
• Saturated Optical Power : -3dBm
• Hot Pluggable Times : >=200
• Warranty : 1-3 Years
• Power Consumption : <2W

Specifications

Compliant with SFF-8431 and IEE802.3ae
Data rate up to 8.5Gb/s，link length up to 80km
Cooled EML transmitter and APD receiver
Low Power Dissipation 1.4W Typical (Maximum:2W)
Diagnostic Performance Monitoring of module temperature, supply voltages, laser bias current, transmit optical power, receive optical power
RoHS compliant and lead free

Testing Standards

Compliant with ISO9001, TUV, CE, FCC, CAS, UL and RoHS certifications

Application

Tri Rate 2.125/4.25/8.5Gbs Fiber Channel

Description

SPT-P158G-ZR Transceiver is designed for 8.5G Fiber- Channel applications. The transceiver consists of two sections: The transmitter section incorporates a coded EML laser, and the receiver section consists of an APD photodiode integrated with a TIA. All modules satisfy class I laser safety requirements.
