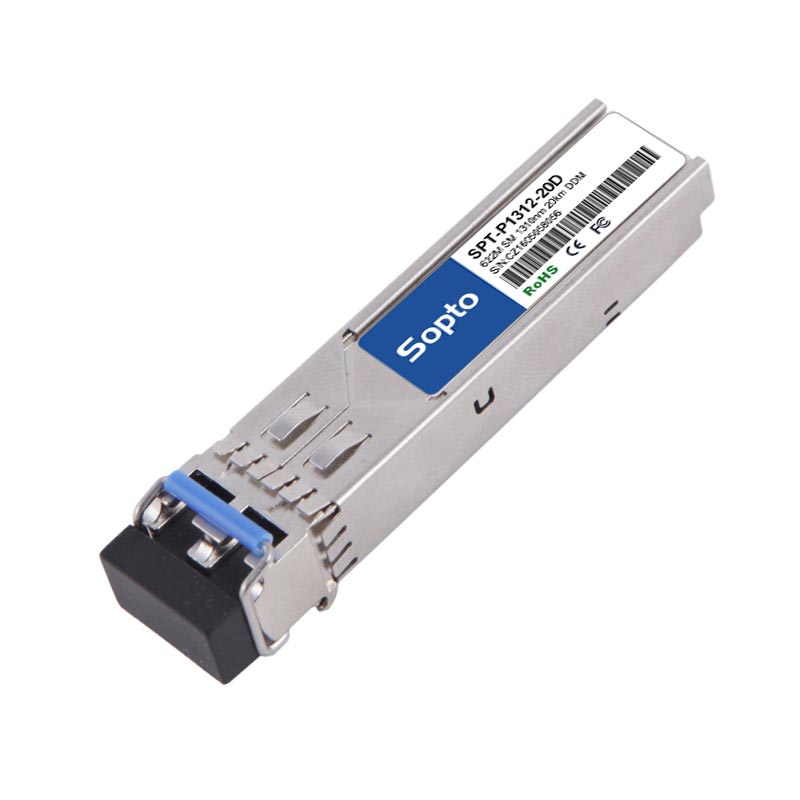

SPT-P1312-20(D)

622M 1310nm 20km LC SM SFP Duplex Transceiver Module

Parmeters

  • Form Factor : SFP
  • Manufacture : Sopto
  • Data Rate : 622M/OC-12/STM-4
  • Place of Origin : Shenzhen, China
  • Transmission distance : 20km
  • Fiber Mode : Single Mode Fiber (SMF)
  • Wavelength : 1310nm
  • Types of Interface : Dual LC Connector
  • Types of Laser : FP
  • Operating Temperature : 0~70°C; -40~+85°C
  • Modes of Communications : Duplex
  • Power Supply : + 3.3V Single power supply
  • Model : SPT-P1312-20(D)
  • Operating Humidity : 0%~90% RH no condensing
  • Extinction Ratio : 10~17dB
  • Receiver Sensitivity : -31dBm
  • Saturated Optical Power : -3dBm
  • Hot Pluggable Times : >=200
  • Warranty : 1-3 Years
  • Power Consumption : <3W

Specifications

Up to 622Mbps data-rate
1310nm FP laser and PIN photo detector for 20km transmission
Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
Digital Diagnostic Monitoring: Internal Calibration or External Calibration
Operating case temperature: Standard: 0 to +70°C, Industrial: -40 to +85°C

Testing Standards

Compliant with ISO9001, TUV, CE, FCC, CAS, UL and RoHS certifications

Application

SDH STM-4, S-4.1
SONET OC-2 IR1
Other optical links


Description

The SFP transceivers are high performance, cost effective modules supporting data-rate 622Mbps and 20km transmission distance with SMF. The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit.
