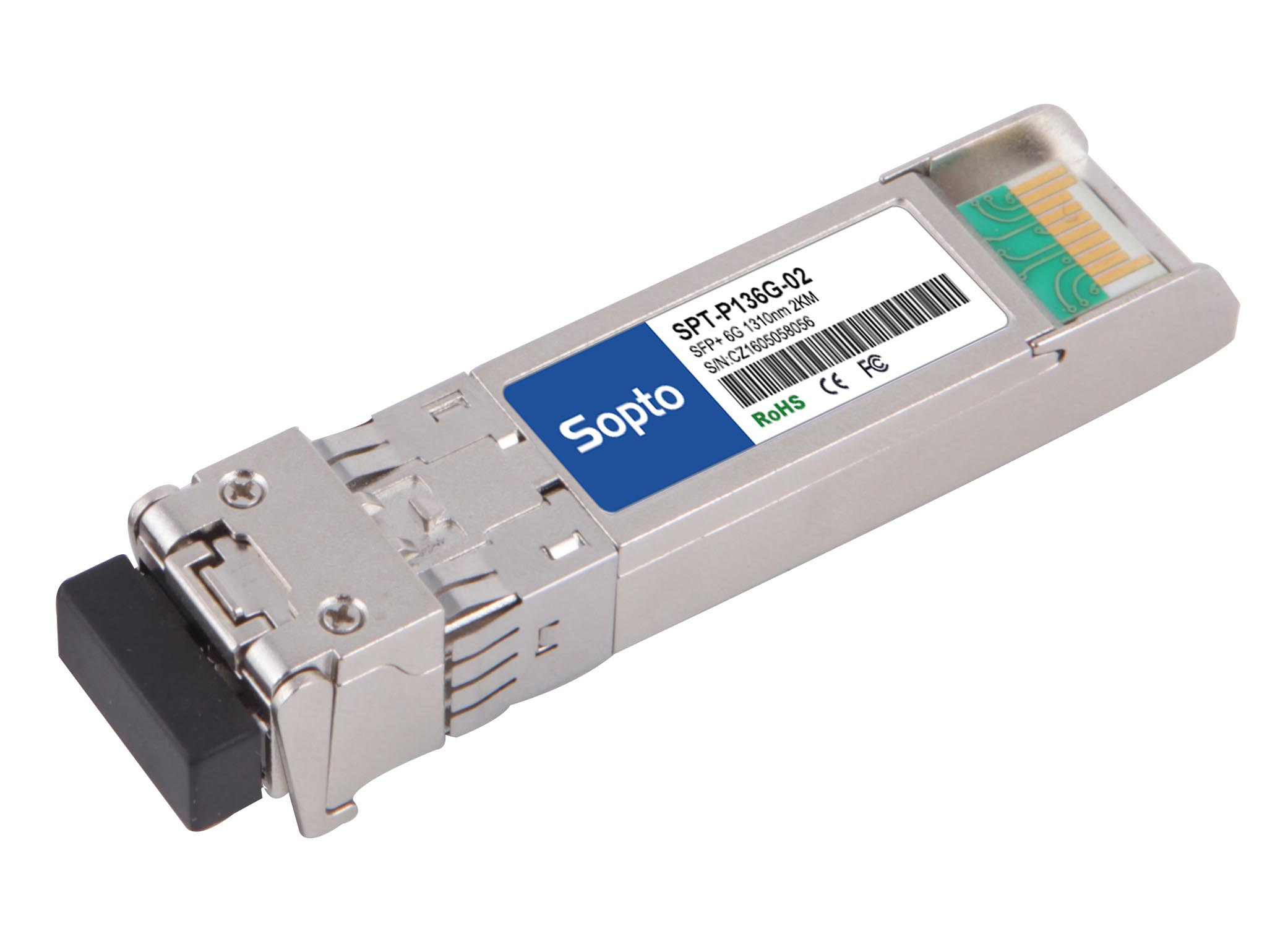

SPT-P136G-02
Parmeters
- Form Factor : SFP+
- Manufacture : Sopto
- Data Rate : 6.25G
- Place of Origin : Shenzhen, China
- Transmission distance : 2km
- Fiber Mode : Single Mode Fiber (SMF)
- Wavelength : 1310nm
- Types of Interface : LC
- Types of Laser : FP
- Operating Temperature : Standard : 0 to +70℃ Industrial : -40 to +85℃
- Modes of Communications : Duplex
- Power Supply : + 3.3V Single power supply
- Model : SPT-P136G-02(T)
- Operating Humidity : 0%~90% RH no condensing
- Extinction Ratio : 3.5~6dB
- Receiver Sensitivity : -24~-11.1dBm
- Saturated Optical Power : -3dBm
- Hot Pluggable Times : >=200
- Warranty : 1-3 Years
- Power Consumption : <2W
Specifications
Support Multi Rate up to 6.25 Gbps
CPRI/OBSAI Compatible Optical Interface
Hot Pluggable SFP+ footprint
1310nm FP transmitter, PIN photo-detector
Transmission distance up to 2km on 9/125 μm SMF
Digital Status monitoring Interface
RoHS compliant and Lead Free
Metal enclosure for lower EMI
Power dissipation <1W
Compliant with FC-PI-4 800-Mx-SN-I, SFF-8431 , SFF-8432 and SFF-8472
Operating case temperature:Standard : 0 to +70℃,Industrial : -40 to +85℃
Testing Standards
Meet ISO9001, TUV, CE, FCC, CAS, UL and RoHS certificates
Application
Radio Base Station
CPRI or OBSAI rates: 614.4Mb/s,1228.8Mb/s,1536Mb/s,2457.6Mb/s,3072Mb/s,4915.2Mb/s,6144Mb/s
LTE optical repeater application
Description
SPT-P136G-02 is a high performance, cost effective modules for serial optical data communications such as CPRI and OBSAI, which is supporting multi rate up to 6.25Gbps, and transmission distance up to 2km on SMF.
The transceiver consists of two sections: The transmitter section incorporates a 1310nm FP driver Andre-timer. The receiver section consists of a PIN photodiode integrated with a Trans impedance preamplifier (TIA).
