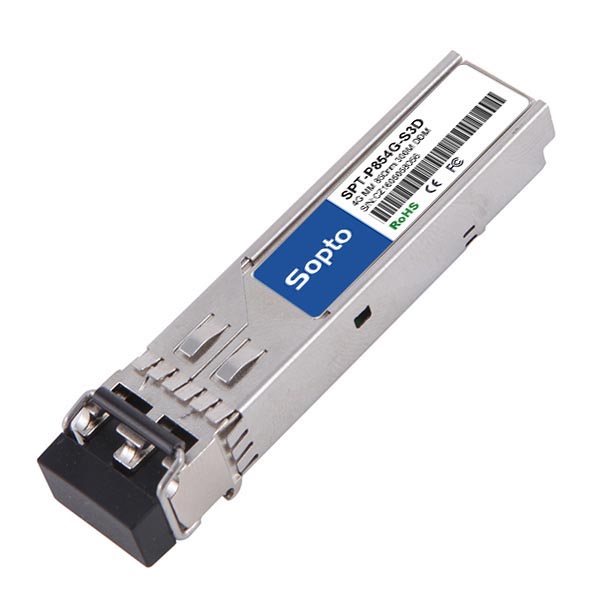

SPT-P854G-S3(D)

Parmeters

• Form Factor : SFP
• Manufacture : Sopto
• Data Rate : 4.25G
• Place of Origin : Shenzhen, China
• Transmission distance : 300m
• Fiber Mode : Multi-mode Fiber (MMF)
• Wavelength : 850nm
• Types of Interface : Dual LC Connector
• Types of Laser : VCSEL
• Operating Temperature : Standard : 0 ~ +70°C; Industrial : -40 ~+85°C
• Modes of Communications : Duplex
• Power Supply : + 3.3V Single power supply
• Model : SPT-P854G-S3(D)
• Operating Humidity : 0%~90% RH no condensing
• Extinction Ratio : 10~17dB
• Receiver Sensitivity : -31dBm
• Saturated Optical Power : -3dBm
• Hot Pluggable Times : >=200
• Warranty : 1-3 Years
• Power Consumption : <3W

Specifications

• Up to 500m on 50/125µm MMF, 300m on 62.5/125µm MMF
• Supports 1.0625/2.125/4.25Gb/s Fiber Channel Operation
• Gigabit Ethernet compatible
• 850nm VCSEL laser transmitter
• SFP MSA SFF-8074i compliant
• Digital Diagnostic SFF-8472 compliant
• Operating case temperature:Standard : 0 to +70°C Industrial : -40 to +85°C

Testing Standards

Compliant with ISO9001, TUV, CE, FCC, CAS, UL and RoHS certifications

Application

Tri Rate 1.0625 / 2.125 / 4.25Gbp/s Fibre Channel
1.25Gbp/s 1000Base-LX Ethernet and 1000Base-LX10

Description

The transceiver consists of three sections: a 850nm VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
