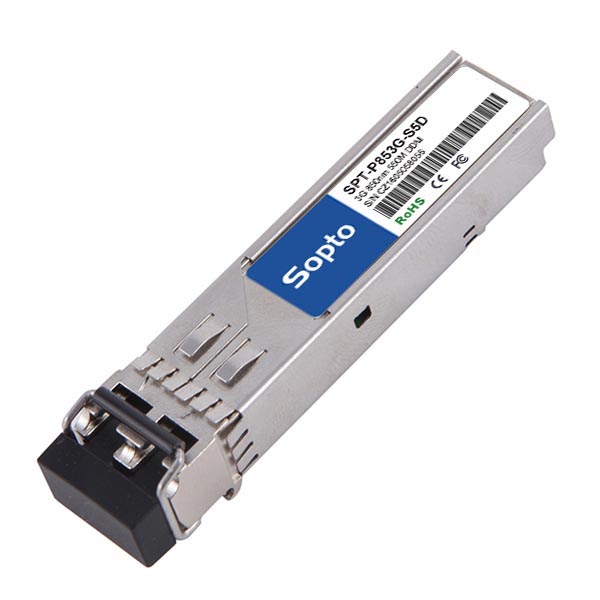

SPT-P853G-S5D
3G 850nm 500m LC MM SFP Duplex DDM Transceiver Module
Parmeters
- Form Factor : SFP
- Manufacture : Sopto
- Data Rate : 3G
- Place of Origin : Shenzhen, China
- Transmission distance : 500m
- Fiber Mode : Multi-mode Fiber (MMF)
- Wavelength : 850nm
- Types of Interface : Dual LC Connector
- Types of Laser : VCSEL
- Operating Temperature : Standard: 0 ~ +70°C; Industrial: -40 ~ +85°C
- Modes of Communications : Duplex
- Power Supply : + 3.3V Single power supply
- Model : SPT-P853G-S5D
- Operating Humidity : 0%~90% RH no condensing
- Extinction Ratio : 10~17dB
- Receiver Sensitivity : -31dBm
- Saturated Optical Power : -3dBm
- Hot Pluggable Times : >=200
- Warranty : 1-3 Years
- Power Consumption : <3W
Specifications
- Operating data rate up to 3.072Gbps
- CPRI/OBSAI Compatible Optical Interface
- Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
- 850nm VCSEL laser and PIN photo detector
- Distance up to 500m with MMF(50/125um)
- Digital Diagnostic Monitoring: External Calibration
- Operating case temperature:Standard: 0 to +70°C,Industrial: -40 to +85°C
Testing Standards
Compliant with ISO9001, TUV, CE, FCC, CAS, UL and RoHS certifications
Application
- Radio Base Station
- OBSAI rates 3.072Gb/s, 1.536Gb/s, 0.768Gb/s
- CPRI rates 3.072Gb/s, 2.4576Gb/s, 1.2288Gb/s and 0.6144Gb/s
Description
The SFP transceivers are high performance, cost effective modules supporting dual data-rate up to 3.072Gbps and 500m transmission distance with MMF.
