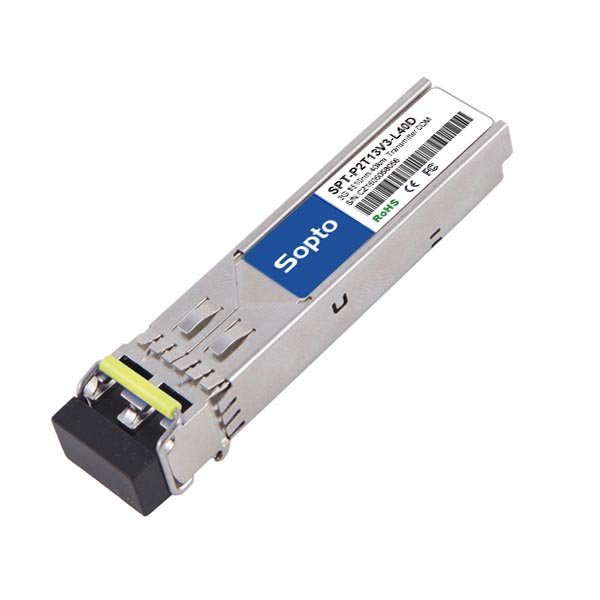

SPT-P2T15V3-40D
Parmeters
- Form Factor : SFP hot Pluggable Video Transmitter
- Manufacture : Sopto
- Data Rate : 3G
- Place of Origin : Shenzhen, China
- Transmission distance : 40km
- Fiber Mode : Single Mode Fiber (SMF)
- Wavelength : 1550nm
- Types of Interface : LC
- Types of Laser : DFB
- Operating Temperature : 0~70°C
- Modes of Communications : Duplex
- Power Supply : + 3.3V Single
- Model : SPT-P2T15V3-40D
- Operating Humidity : 0%~90% RH no condensing
- Extinction Ratio : 6~15dB
- Receiver Sensitivity : <-25dBm
- Saturated Optical Power : -3dBm
- Hot Pluggable Times : >=200
- Warranty : 1-3 Years
- Power Consumption : <2W
Specifications
HD-SDI SFP Transmitter available
SD-SDI SFP Transmitter available
3G-SDI SFP Transmitter available
SMPTE 297-2006 Compatible.
Metal enclosure for Lower EMI
1550nm DFB laser
Supports video pathological patterns for SD-SDI, HD-SDI and 3G-SDI
Digital Diagnostic functions available through the I2C interface
Testing Standards
All of our 3G Video Transceivers are compliant with ISO9001, TUV, CE, FCC, CAS, UL and RoHS certifications.
Application
SMPTE 297-2006 Compatible Electrical-to-Optical Interfaces
HDTV/SDTV Service Interfaces
Description
The transceiver is designed to transmit/receive data rates from 50Mbps to 2.97Gbps and is specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE 259M, SMPTE 344M, SMPTE 292M and SMPTE 424M serial rates. The module is fully compliant with SMPTE 297M-2006.
It supports video pathological patterns for SD-SDI, HD-SDI and 3G-SDI. It plays good performance in the range of the standard temperature (0 to +70°C).
