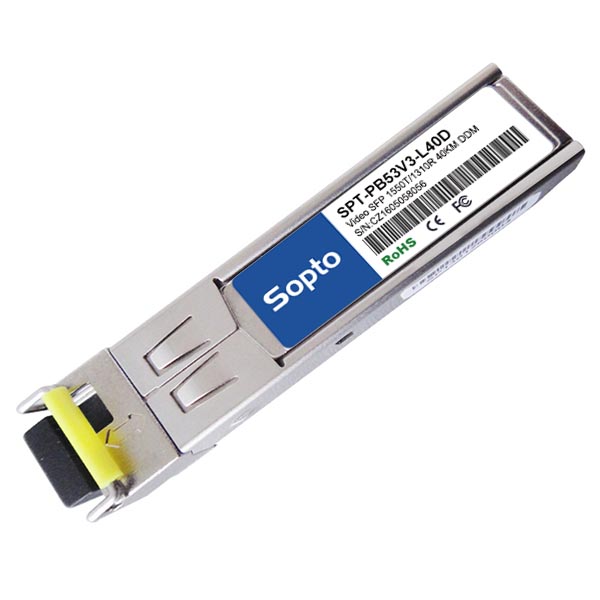

SPT-PB53V3-L40D

Parmeters

• Form Factor : SFP hot Pluggable Video Transceiver
• Manufacture : Sopto
• Data Rate : 3G
• Place of Origin : Shenzhen, China
• Transmission distance : 40km
• Fiber Mode : Single Mode Fiber (SMF)
• Wavelength : 1550nm TX/ 1310nm RX
• Types of Interface : LC
• Types of Laser : DFB
• Operating Temperature : Standard:0~70°C; Industrial:-40~85°C
• Modes of Communications : Simplex
• Power Supply : + 3.3V Single
• Model : SPT-PB53V3-L40D
• Operating Humidity : 0%~90% RH no condensing
• Extinction Ratio : 6~15dB
• Receiver Sensitivity : <-25dBm
• Saturated Optical Power : <-25dBm
• Hot Pluggable Times : >=200
• Warranty : 1-3 Years
• Typesof Multiplexing : WDM/BIDI
• Power Consumption : <2W

Specifications

HD-SDI Bi-Directional SFP Transceiver available
SD-SDI Bi-Directional SFP Transceiver available
3G-SDI Bi-Directional SFP Transceiver available
SMPTE 297-2006 Compatible.
Metal enclosure for Lower EMI
1550nm DFB laser and PIN photo detector
Supports video pathological patterns for SD-SDI, HD-SDI and 3G-SDI
Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
Digital Diagnostic functions available through the I2C interface
Operating case temperature:Standard: 0 to +70°C,Industrial: -40 to +85°C
　　　

Testing Standards

All of our 3G Video Transceivers are compliant with ISO9001, TUV, CE, FCC, CAS, UL and RoHS certifications.

Application

SMPTE 297-2006 Compatible Electrical-to-Optical Interfaces.
HDTV/SDTV Service Interfaces.

Description

The transceiver is designed to transmit/receive data rates from 50Mbps to 2.97Gbps and is specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE 259M, SMPTE 344M, SMPTE 292M and SMPTE 424M serial rates. The module is fully compliant with SMPTE 297M-2006.

It supports video pathological patterns for SD-SDI, HD-SDI and 3G-SDI. It plays good performance in the range of the standard temperature (0 to +70°C) and the industrial temperature (-40 to +85°C).
