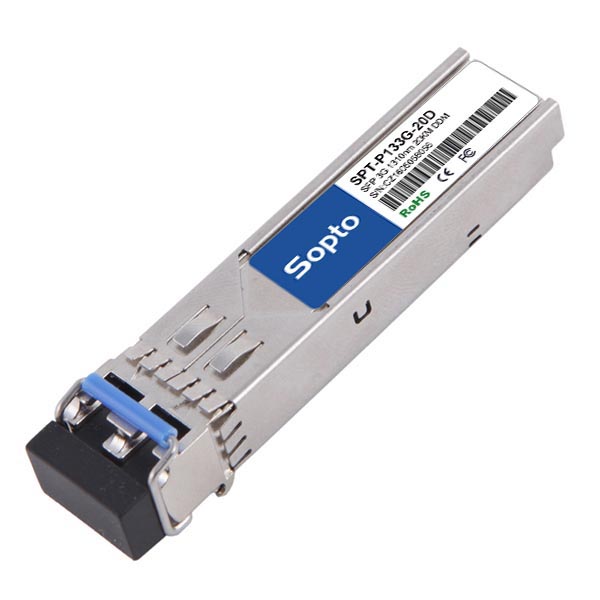

SPT-P133G-20(D)
3G 1310nm 20km LC SM DDM SFP Duplex DDM Transceiver Module
Parmeters
- Form Factor : SFP
- Manufacture : Sopto
- Data Rate : 3G
- Place of Origin : Shenzhen, China
- Transmission distance : 20km
- Fiber Mode : Single Mode Fiber (SMF)
- Wavelength : 1310nm
- Types of Interface : LC
- Types of Laser : DFB
- Operating Temperature : 0~70°C; -40~+85°C
- Modes of Communications : Duplex
- Power Supply : + 3.3V Single power supply
- Model : SPT-P133G-20(D)
- Operating Humidity : 0%~90% RH no condensing
- Extinction Ratio : 10~17dB
- Receiver Sensitivity : -31dBm
- Saturated Optical Power : -3dBm
- Hot Pluggable Times : >=200
- Warranty : 1-3 Years
- Power Consumption : <3W
Specifications
- Operating data rate up to 3.072Gbps
- CPRI/OBSAI Compatible Optical Interface
- Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
- 1310nmDFB-LD Transmitter and PIN photo detector
- Digital Diagnostic Monitoring: Internal Calibration or External Calibration
- Operating case temperature: Standard: 0 to 70 °,Industrial: -40 to +85°C
Testing Standards
Compliant with ISO9001, TUV, CE, FCC, CAS, UL and RoHS certifications
Application
- Radio Base Station
- OBSAI rates 3.072Gb/s, 1.536Gb/s, 0.768Gb/s
- CPRI rates 3.072Gb/s, 2.4576Gb/s, 1.2288Gb/s, and 0.6144Gb/s
Description
The SFP transceivers are high performance, cost effective modules supporting dual data-rate up to 3.072Gbps and 20km transmission distance with SMF.
The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
