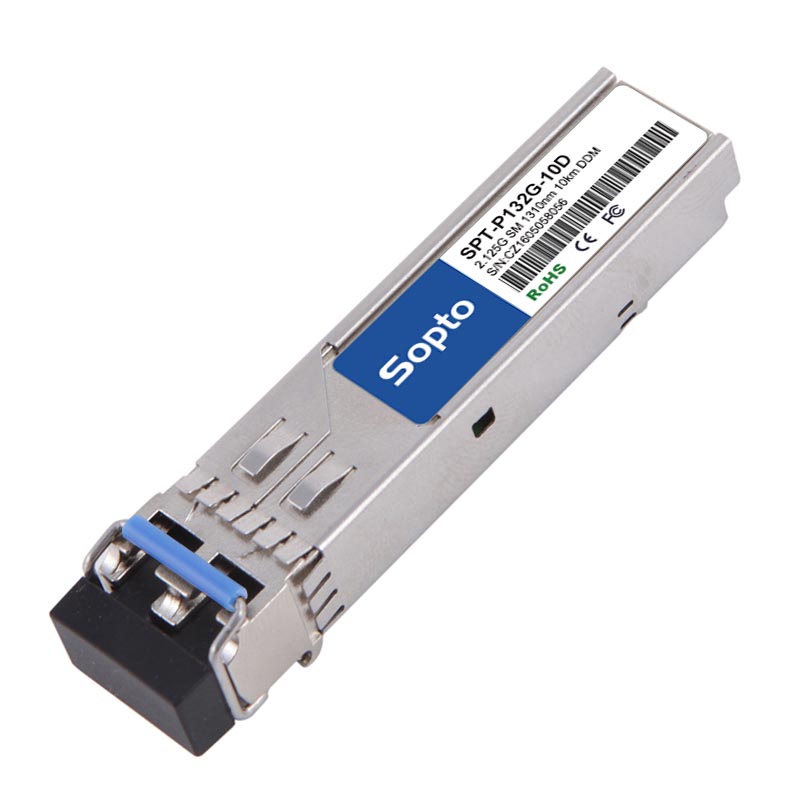

SPT-P132G-10(D)

Parmeters

• Form Factor : SFP
• Manufacture : Sopto
• Data Rate : 2.125G
• Place of Origin : Shenzhen, China
• Transmission distance : 10km
• Fiber Mode : Single Mode Fiber (SMF)
• Wavelength : 1310nm
• Types of Interface : LC
• Types of Laser : FP
• Operating Temperature : Standard : 0 ~ +70°C Industrial : -40 ~ +85°C
• Modes of Communications : Duplex
• Power Supply : + 3.3V Single power supply
• Model : SPT-P132G-10(D)
• Operating Humidity : 0%~90% RH no condensing
• Extinction Ratio : 10~17dB
• Receiver Sensitivity : -31dBm
• Saturated Optical Power : -3dBm
• Hot Pluggable Times : >=200
• Warranty : 1-3 Years
• Power Consumption : <3W

Specifications

            Up to 2.125Gb/s bi-directional data links

• 1310nm FP laser and PIN photodetector for 10km transmission
• Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
• Digital Diagnostic Monitoring: Internal Calibration or External Calibration
• Operating case temperature: Standard : 0 to +70°C, Industrial : -40 to +85°C

Testing Standards

Compliant with ISO9001, TUV, CE, FCC, CAS, UL and RoHS certifications

Application

• 2X Fiber Channel
• Switch to Switch interface
• Switched backplane applications
• Router/Server interface
• Other optical transmission systems

Description

The SFP transceivers are high performance, cost effective modules supporting dual data-rate of 2.125Gbps and 10km transmission distance with SMF.

The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
