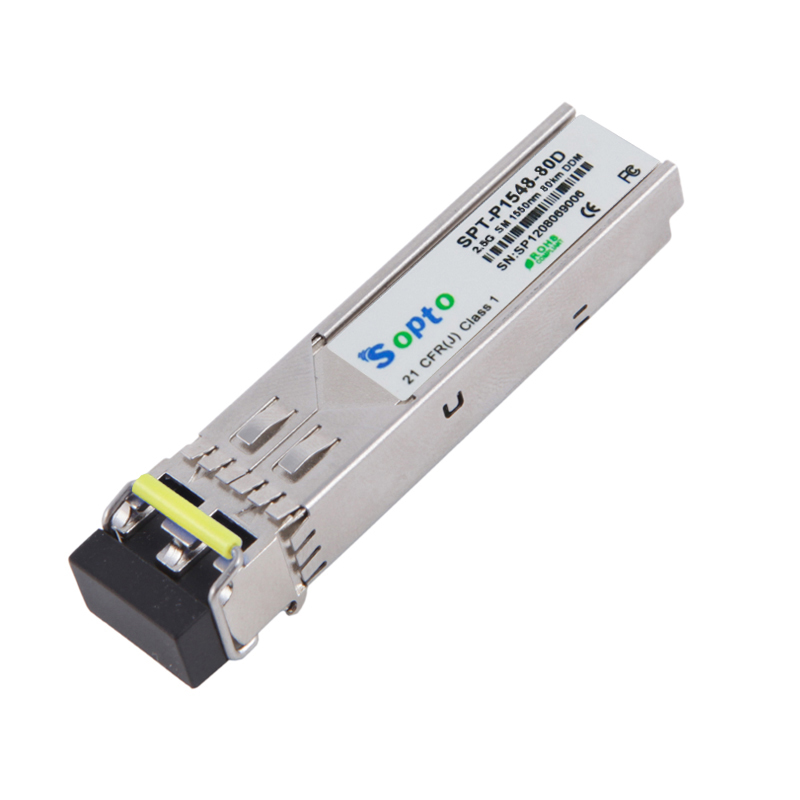

SPT-P1548-80(D)
2.5G/OC48 1550nm 80km LC SM SFP Duplex DDM Transceiver Module
Parmeters
- Form Factor : SFP
- Manufacture : Sopto
- Data Rate : 2.488G/2.5G/OC-48
- Place of Origin : Shenzhen, China
- Transmission distance : 80km
- Fiber Mode : Single Mode Fiber (SMF)
- Wavelength : 1550nm
- Types of Interface : LC
- Types of Laser : DFB
- Operating Temperature : Standard:0~70°C; Extended:-20~85°C
- Modes of Communications : Duplex
- Power Supply : + 3.3V Single power supply
- Model : SPT-P1548-80D
- Operating Humidity : 0%~90% RH no condensing
- Extinction Ratio : 10~17dB
- Receiver Sensitivity : -31dBm
- Saturated Optical Power : -3dBm
- Hot Pluggable Times : >=200
- Warranty : 1-3 Years
- Power Consumption : <3W
Specifications
- Up to 2.488Gb/s bi-directional data links
- 1550nm DFB laser and APD photodetector for 80km transmission
- Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
- Digital Diagnostic Monitoring: Internal Calibration or External Calibration
- Operating case temperature: Standard : 0 to +70°C Extended : -20 to +85°C
Testing Standards
Compliant with ISO9001, TUV, CE, FCC, CAS, UL and RoHS certifications
Application
- SDH STM-16 and SONET OC-48 system
- 2X Fiber Channel
- Switch to Switch interface
- Switched backplane applications
- Router/Server interface
- Other optical transmission systems
Description
The SFP transceivers are high performance, cost effective modules supporting dual data-rate of 2.488Gbps and 80km transmission distance with SMF.
The transceiver consists of three sections: a DFB laser transmitter, a APD photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
