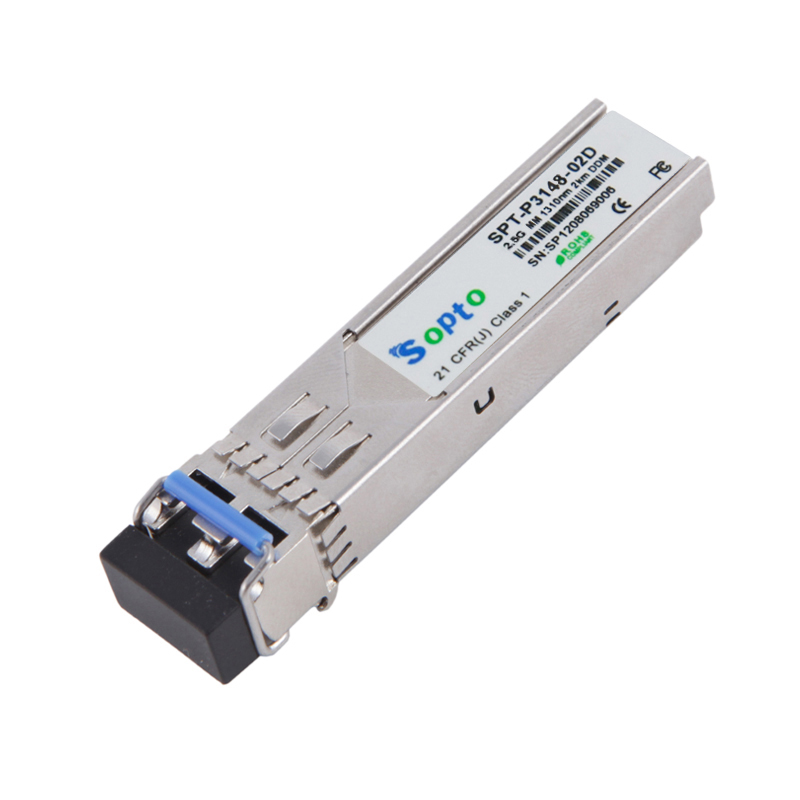

SPT-P3148-02(D)

Parmeters

• Form Factor : SFP
• Manufacture : Sopto
• Data Rate : 2.488G/2.5G/OC-48
• Place of Origin : Shenzhen, China
• Transmission distance : 2km
• Fiber Mode : Multimode Fiber（MMF）
• Wavelength : 1310nm
• Types of Interface : LC
• Types of Laser : FP
• Operating Temperature : Standard : 0 ~ +70°C, Extended : -40 ~ +85°C
• Modes of Communications : Duplex
• Power Supply : + 3.3V Single power supply
• Model : SPT-P3148-02(D)
• Operating Humidity : 0%~90% RH no condensing
• Extinction Ratio : 10~17dB
• Receiver Sensitivity : -31dBm
• Saturated Optical Power : -3dBm
• Hot Pluggable Times : >=200
• Warranty : 1-3 Years
• Power Consumption : <3W

Specifications

• Up to 2.488Gb/s bi-directional data links
• 1310nm FP laser and PIN photodetector for 2km transmission
• Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
• Digital Diagnostic Monitoring:Internal Calibration or External Calibration
• Operating case temperature:  Standard : 0 to +70°C, Industrial : -40 to +85°C

Testing Standards

Compliant with ISO9001, TUV, CE, FCC, CAS, UL and RoHS certifications

Application

• SDH STM-16 and SONET OC-48 system
• 2X Fiber Channel
• Switch to Switch interface
• Switched backplane applications
• Router/Server interface
• Other optical transmission systems

Description

The SFP transceivers are high performance, cost effective modules supporting dual data-rate of 2.488Gbps and 2km transmission distance with MMF.
