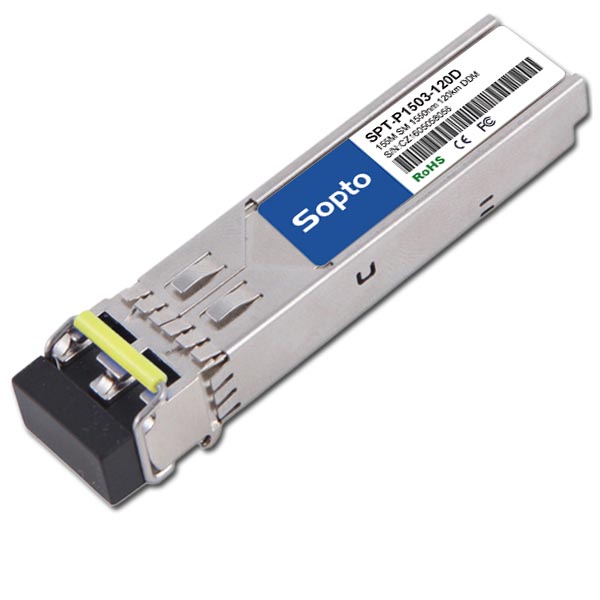

SPT-P1503-120D
155M 1550nm 120km LC SM SFP Duplex DDM Transceiver Module
Parmeters
- Form Factor : SFP
- Manufacture : Sopto
- Data Rate : 155M/OC-3/STM-1
- Place of Origin : Shenzhen, China
- Transmission distance : 120km
- Fiber Mode : Single Mode Fiber (SMF)
- Wavelength : 1550nm
- Types of Interface : Dual LC Connector
- Types of Laser : DFB
- Operating Temperature : Standard: 0~70°C; Industrial: -40~85°C
- Modes of Communications : Duplex
- Power Supply : + 3.3V Single power supply
- Model : SPT-P1503-120D
- Operating Humidity : 0%~90% RH no condensing
- Extinction Ratio : 10~17dB
- Receiver Sensitivity : -31dBm
- Saturated Optical Power : -3dBm
- Hot Pluggable Times : >=200
- Warranty : 1-3 Years
- Power Consumption : <3W
Specifications
- Data-rate of 155Mbps
- 1550nm DFB laser and PIN photo detector for 120km transmission
- Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
- Digital Diagnostic Monitoring: Internal Calibration or External Calibration
- Operating case temperature: Standard: 0 to +70°C, Industrial: -40 to +85°C
Testing Standards
Compliant with ISO9001, TUV, CE, FCC, CAS, UL and RoHS certifications
Application
- Gigabit Ethernet
- Fiber Channel
- Switch to Switch interface
- Switched backplane applications
- Router/Server interface
- Other optical transmission systems
Description
The SFP transceivers are high performance, cost effective modules supporting 155Mbps data-rate and 120km transmission distance with SMF. The transceiver consists of three sections: an uncooled DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit.
