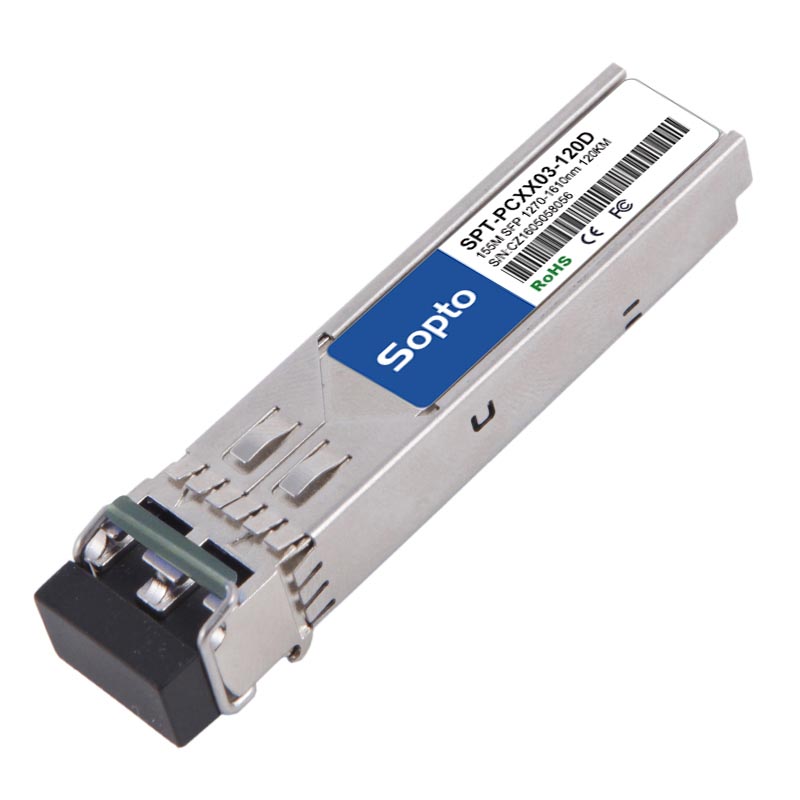

SPT-PC(27-61)03-120D

155M 1270~1610nm 120km LC SM CWDM SFP Duplex DDM Transceiver Module

Parmeters

  • Form Factor : CWDM SFP hot Pluggable
  • Manufacture : Sopto
  • Data Rate : 155M/OC-3/STM-1
  • Place of Origin : Shenzhen, China
  • Transmission distance : 120km
  • Fiber Mode : Single Mode Fiber (SMF)
  • Wavelength : CWDM 1270-1610nm
  • Types of Interface : LC
  • Types of Laser : 9 CWDM DFB laser
  • Operating Temperature : 0~70°C
  • Modes of Communications : Duplex
  • Power Supply : + 3.3V Single power supply
  • Model : SPT-PC(27-61)03-120D
  • Operating Humidity : 0%~90% RH no condensing
  • Extinction Ratio : 9~17dB
  • Receiver Sensitivity : <-31dBm
  • Saturated Optical Power : -3dBm
  • Hot Pluggable Times : >=200
  • Warranty : 1-3 Years
  • Typesof Multiplexing : CWDM
  • Power Consumption : <3W

Specifications

  • Data-rate of 155Mbps operation
  • 9 CWDM DFB wavelengths laser and PIN photodetector for 120km transmission
  • Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
  • Digital Diagnostic Monitoring:Internal Calibration or External Calibration

Testing Standards

All of our CWDM SFP Transceivers are compliant with ISO9001, TUV, CE, FCC, CAS, UL and RoHS certifications.

Application

  • Gigabit Ethernet
  • Fiber Channel
  • Switch to Switch interface
  • Switched backplane applications
  • Router/Server interface
  • Other optical transmission systems

Description

The SFP transceivers are high performance, cost effective modules supporting data-rate of 155Mbps and 120km transmission distance with SMF. The transceiver consists of three sections: an uncooled CWDM DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit.
