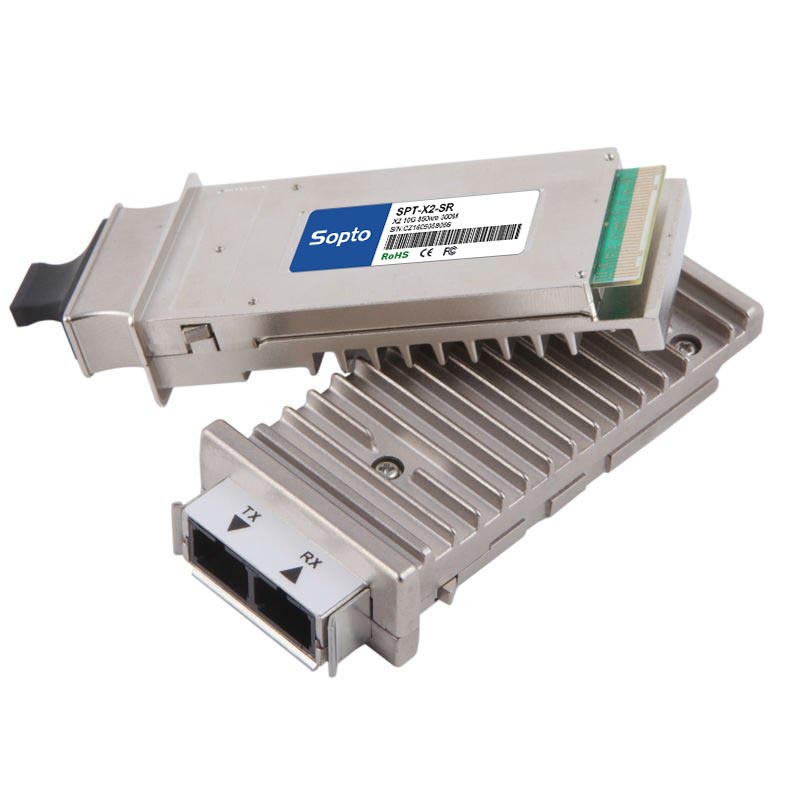

SPT-X2-SR

Parmeters

• Form Factor : 10G X2
• Manufacture : Sopto
• Data Rate : 10G
• Place of Origin : Shenzhen, China
• Transmission distance : 300m
• Fiber Mode : Multi-mode Fiber (MMF)
• Wavelength : 850nm
• Types of Interface : SC
• Types of Laser : VCSEL
• Operating Temperature : 0~70°C
• Modes of Communications : Duplex
• Power Supply : + 3.3V
• Model : SPT-X2-SR
• Operating Humidity : 0%~90% RH no condensing
• Extinction Ratio : 3.5~9dB
• Receiver Sensitivity : -11dBm
• Saturated Optical Power : -1dBm
• Hot Pluggable Times : >=200
• Warranty : 1-3 Years
• Power Consumption : <4W

Specifications

• Compatible with X2 MSA Rev2.0b
• Support of IEEE 802.3ae 10GBASE-SR at 10.3125Gbps
• Transmission Distance up to 300m(MMF)
• Vertical Cavity Surface Emitting Laser at 850nm
• SC Duplex Optical Connector
• Hot Pluggable 70-PIN Connector with XAUI Electrical Interface
• Management and control via MDIO 2-wire interface
• Power Supply :+3.3V, APS(+1.2V)
• Diagnostic Optics Monitoring

Testing Standards

Compliant with ISO9001, TUV, CE, FCC, CAS, UL and RoHS certifications

Application

• 10GE Ethernet switches and routers
• 10GE Core-routers
• 10GE Storage
• Other 10Gbps Ethernet Transmission System

Description

The SPT-X2-SR transceiver module is designed for 10GE Ethernet switches and routers, 10GE Core-routers, 10GE Storage and other 10Gbps Ethernet Transmission System.
