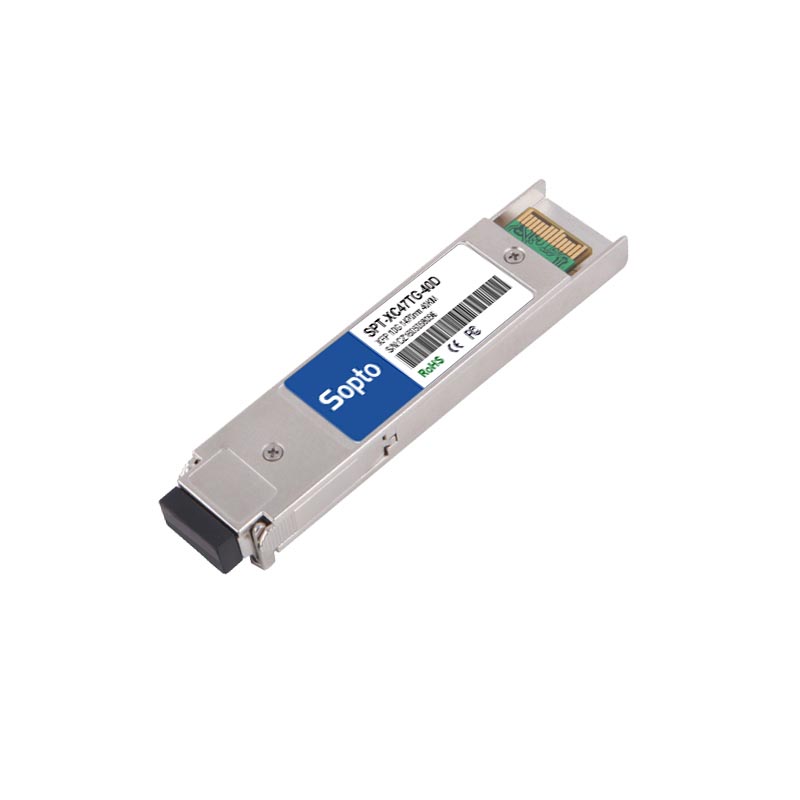

SPT-XC(47-61)TG-40D
10G 40km 1470~1610nm LC SM CWDM XFP Duplex DDM Transceiver Module
Parmeters
- Form Factor : XFP ER hot Pluggable Transceiver
- Manufacture : Sopto
- Data Rate : 10G/OC-192/STM-64
- Place of Origin : Shenzhen, China
- Transmission distance : 40km
- Fiber Mode : Single Mode Fiber (SMF)
- Wavelength : CWDM 1470-1610nm
- Types of Interface : LC
- Types of Laser : DFB
- Operating Temperature : 0~70°C
- Modes of Communications : Duplex
- Power Supply : + 3.3V Single
- Model : SPT-XC(47-61)TG-40D
- Operating Humidity : 0%~90% RH no condensing
- Extinction Ratio : 6~17dB
- Receiver Sensitivity : <-25dBm
- Saturated Optical Power : -3dBm
- Hot Pluggable Times : >=200
- Warranty : 1-3 Years
- Typesof Multiplexing : CWDM
- Power Consumption : <2.5W
Specifications
- Wavelength selectable to ITU-T standards covering CWDM grid wavelengthsXFP MSA Compliant
- data rate from 9.95 Gbps to 11.3Gbps
- No Reference Clock required
- Cold EML transmitter and APD receiver
- 1470nm~1610nm link length up to 40km
- Diagnostic Performance Monitoring of module temperature, supply voltages, laser bias current, transmit optical power, receive optical powerRoHS compliant and lead free
Testing Standards
All of our 10G XFP Transceivers are compliant with ISO9001, TUV, CE, FCC, CAS, UL and RoHS certifications.
Application
- SONET OC-192&SDH STM 64
- 10G Ethernet
- 80 km 10G Fiber Channel
- CWDM Networks
Description
After test, this XFP transceiver works perfectly at SONET OC-192, SDH STM-64, 10G Ethernet as well as 10G Fibre Channel. It also plays an important role in CWDM network. You can select wavelength from 1470-1610nm with Step 20nm.
