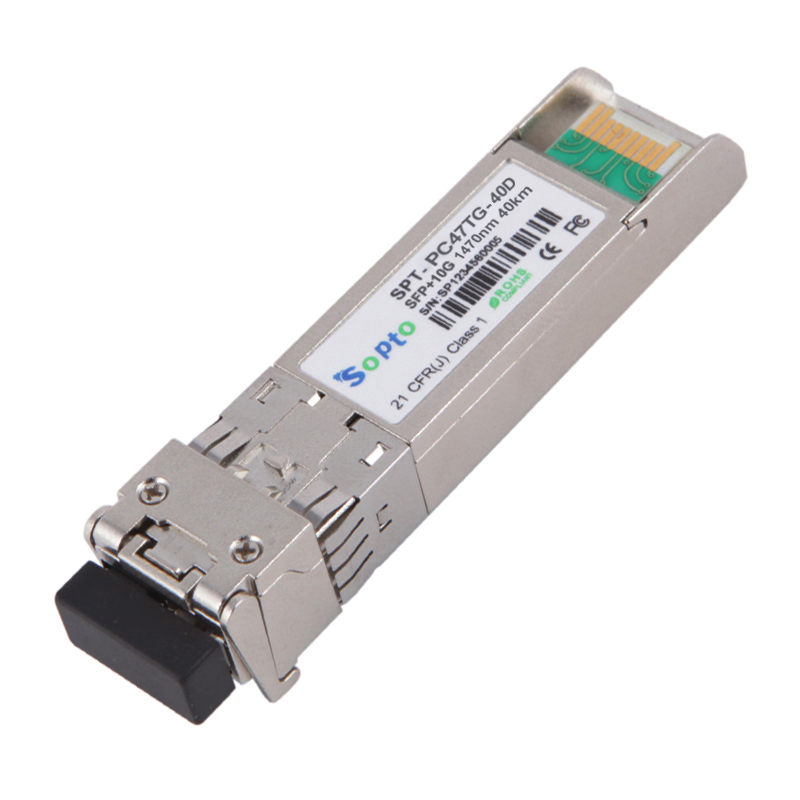

SPT-PC(27-61)TG-40D

Parmeters

• Form Factor : CWDM SFP+
• Manufacture : Sopto
• Data Rate : 10G
• Place of Origin : Shenzhen, China
• Transmission distance : 40km
• Fiber Mode : Single Mode Fiber (SMF)
• Wavelength : 1270-1610nm
• Types of Interface : Dual LC Connector
• Types of Laser : EML
• Operating Temperature : -5ºC~70ºC
• Modes of Communications : Duplex
• Power Supply : + 3.3V Single power supply
• Model : SPT-PC(47-61)TG-40D
• Operating Humidity : 0%~90% RH no condensing
• Extinction Ratio : 9~17dB
• Receiver Sensitivity : <-31dBm
• Saturated Optical Power : -3dBm
• Hot Pluggable Times : >=200
• Warranty : 1-3 Years
• Typesof Multiplexing : CWDM
• Power Consumption : <3W

Specifications

• Compliant with SFF-8431 and IEE802.3ae
• Data rate selectable ≤4.25Gbps or 9.95Gbps to 10.3Gbps bit rates
• Cooled EML transmitter and PIN receiver
• Wavelength selectable to ITU-T standards covering
• CWDM grid wavelengths link length up to 40km
• Low Power Dissipation 1.5W Maximum
• Diagnostic Performance Monitoring of module temperature, supply voltages, laser bias current, transmit optical power, receive optical power
• RoHS compliant and lead free

Testing Standards

All of our CWDM SFP+ Transceivers are compliant with ISO9001, TUV, CE, FCC, CAS, UL and RoHS certifications.

Application

• 10GBASE-ER/EW (with/without FEC)
• 10G Fiber Channel (with/without FEC)

Description

SFP+ER CWDM Transceiver is designed for 10GBASE-ER/EW, and 8.5G/10G Fiber- Channel applications. The transceiver consists of two sections: The transmitter section incorporates a cooled EML laser. And the receiver section consists of a PIN photodiode integrated with a TIA.It plays well in the range of temperature from -5ºC to 70ºC.
