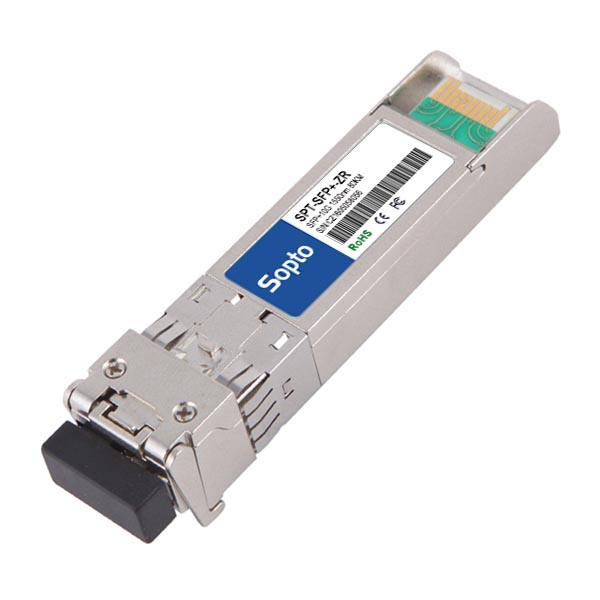

SPT-SFP+-ZR

Parmeters

• Form Factor : SFP+
• Manufacture : Sopto
• Data Rate : 10GBASE-ZR
• Place of Origin : Shenzhen, China
• Transmission distance : 80km
• Fiber Mode : Single Mode Fiber (SMF)
• Wavelength : 1550nm
• Types of Interface : Dual LC Connector
• Types of Laser : EML
• Operating Temperature : -5°C~70°C
• Modes of Communications : Duplex
• Power Supply : + 3.3V Single power supply
• Model : SPT-SFP+-ZR
• Operating Humidity : 0%~90% RH no condensing
• Extinction Ratio : 3.5~6dB
• Receiver Sensitivity : -24~-11.1dBm
• Saturated Optical Power : -3dBm
• Hot Pluggable Times : >=200
• Warranty : 1-3 Years
• Power Consumption : <2W

Specifications

• Compliant with SFF-8431,SFF-8432 and IEE802.3ae
• 10GBASE-ZR, and 1G/2G/4G/ 8G/10G Fiber Channel applications.
• Cooled EML transmitter and APD receiver
• link length up to 80km (with amplifier)
• Low Power Dissipation 1.4W Typical (Maximum:2W)
• Diagnostic Performance Monitoring of module temperature, supply Voltages, laser bias current, transmit optical power, receive optical power
• RoHS compliant and lead free

Testing Standards

Compliant with ISO9001, TUV, CE, FCC, CAS, UL and RoHS certifications

Application

• 10G Ethernet
• 10G Fiber Channel (with/without FEC)

Description

SFP+-ZR 1550nm Transceiver is a “Limiting module”, designed for 10G Ethernet, and 2G/4G/ 8G/10G Fiber- Channel applications.
The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a APD photodiode integrated with a TIA. All modules satisfy class I laser safety requirements.
