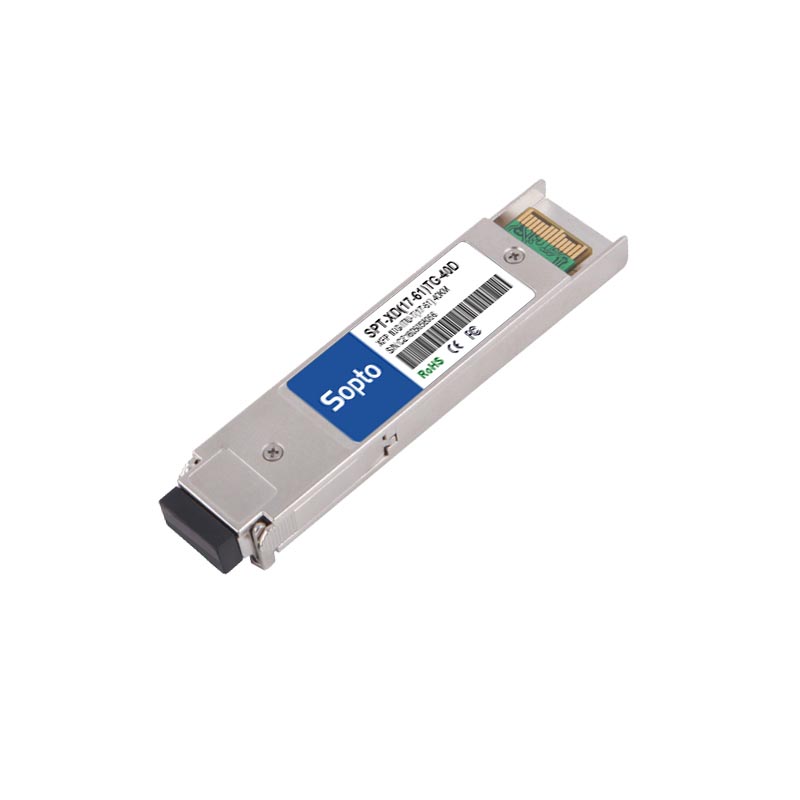

SPT-XD(17-61)TG-40D
10G 1528~1565nm 40km LC SM DWDM XFP Duplex DDM Transceiver Module
Parmeters
- Form Factor : DWDM XFP ER Hot Pluggable Transceiver
- Manufacture : Sopto
- Data Rate : 10G/OC-192/STM-64
- Place of Origin : Shenzhen, China
- Transmission distance : 40km
- Fiber Mode :
- Wavelength : DWDM:1270-1610nm
- Types of Interface : LC
- Types of Laser : EML
- Operating Temperature : -5 ºC ~+70 ºC
- Modes of Communications : Duplex
- Power Supply : + 3.3V Single
- Model : SPT-XD(17-61)TG-40D
- Operating Humidity : 0%~90% RH no condensing
- Extinction Ratio : 8.2~17dB
- Receiver Sensitivity : <-24dBm
- Saturated Optical Power : -3dBm
- Hot Pluggable Times : >=200
- Warranty : Single Mode Fiber (SMF)
- Typesof Multiplexing : DWDM
- Power Consumption : <3.5W
Specifications
- Wavelength selectable to C-band ITU-T grid wavel
- Suitable for use in 100GHz channel spacing DWDM systems
- XFP MSA Rev 4.5 Compliant
- Data rate from 9.95Gbps to 11.3Gbps
- No Reference Clock required
- Cooled EML and PIN receiver
- XFI and line side loopback Mode Supported
- Diagnostic Performance Monitoring of module temperature,
- Supply Voltages, laser bias current, transmit optical power, and receive optical power
- RoHS6 compliant (lead free)
Testing Standards
All of our DWDM 10GBase-ER XFP Transceivers are compliant with ISO9001, TUV, CE, FCC, CAS, UL and RoHS certifications.
Application
- SONET OC-192&SDH STM 64 (with/without FEC)
- 10GBASE ER/EW (with/without FEC)
- 40km 10G Fiber Channel
- DWDM Networks
Description
40km DWDM XFP Transceiver exhibits excellent wavelength stability, supporting operation at 100GHz channel, cost effective module. It is designed for 10G DWDM SDH, 10GBASE-ER/EW and 10G Fiber-Channel applications.
