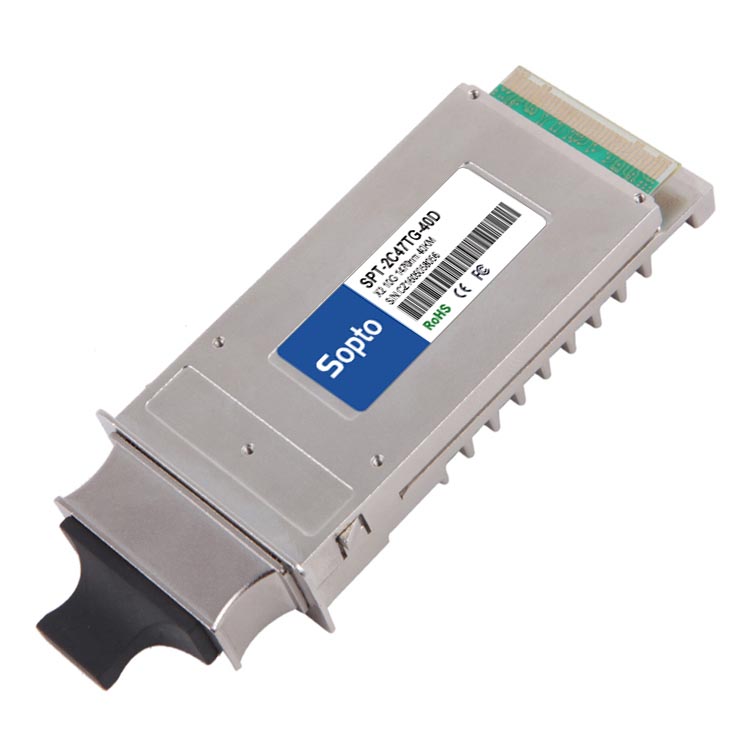

SPT-2C(47-61)TG-40D
10G 1470~1610nm 40km SC SM CWDM X2 ER Duplex DDM Transceiver Module
Parmeters
- Form Factor : X2 ER hot Pluggable Transponder
- Manufacture : Sopto
- Data Rate : 10G
- Place of Origin : Shenzhen, China
- Transmission distance : 40km
- Fiber Mode : Single Mode Fiber (SMF)
- Wavelength : CWDM 1470-1610nm
- Types of Interface : SC
- Types of Laser : Cooled EA-DFB
- Operating Temperature : 0~70°C
- Modes of Communications : Duplex
- Power Supply : + 3.3V Single; +5.0V
- Model : SPT-2C(47-61)TG-40D
- Operating Humidity : 0%~90% RH no condensing
- Extinction Ratio : 9~17dB
- Receiver Sensitivity : <-16.5dBm
- Saturated Optical Power : -3dBm
- Hot Pluggable Times : >=200
- Warranty : 1-3 Years
- Typesof Multiplexing : CWDM
- Power Consumption : <4W
Specifications
- X2 MSA Compliant
- 70-PIN connector
- SC duplex receptacle package
- Wavelength selectable to ITU-T standards covering CWDM grid wavelengths
- Cooled EA-DFB/PIN-PD
- Power supply: +5.0 V, +3.3 V, APS:+1.2 V
- Digital Diagnostic Monitoring
- Management and control with MDIO 2-wire bus
- XAUI electrical interface 4 x 3.125 Gb/s Ethernet
- ≤40km ER(Extended Range)10GBE
- RoHS compliant and lead free
Testing Standards
All of our 10G X2 ER Transponders are compliant with ISO9001, TUV, CE, FCC, CAS, UL and RoHS certifications.
Application
- 10 Gb/s Ethernet transmission systems
Description
It is specifically for 10G Ethernet transmission systems within the transmission distance of 40km. You can select what you need at wavelength from 1470nm to 1610nm.
