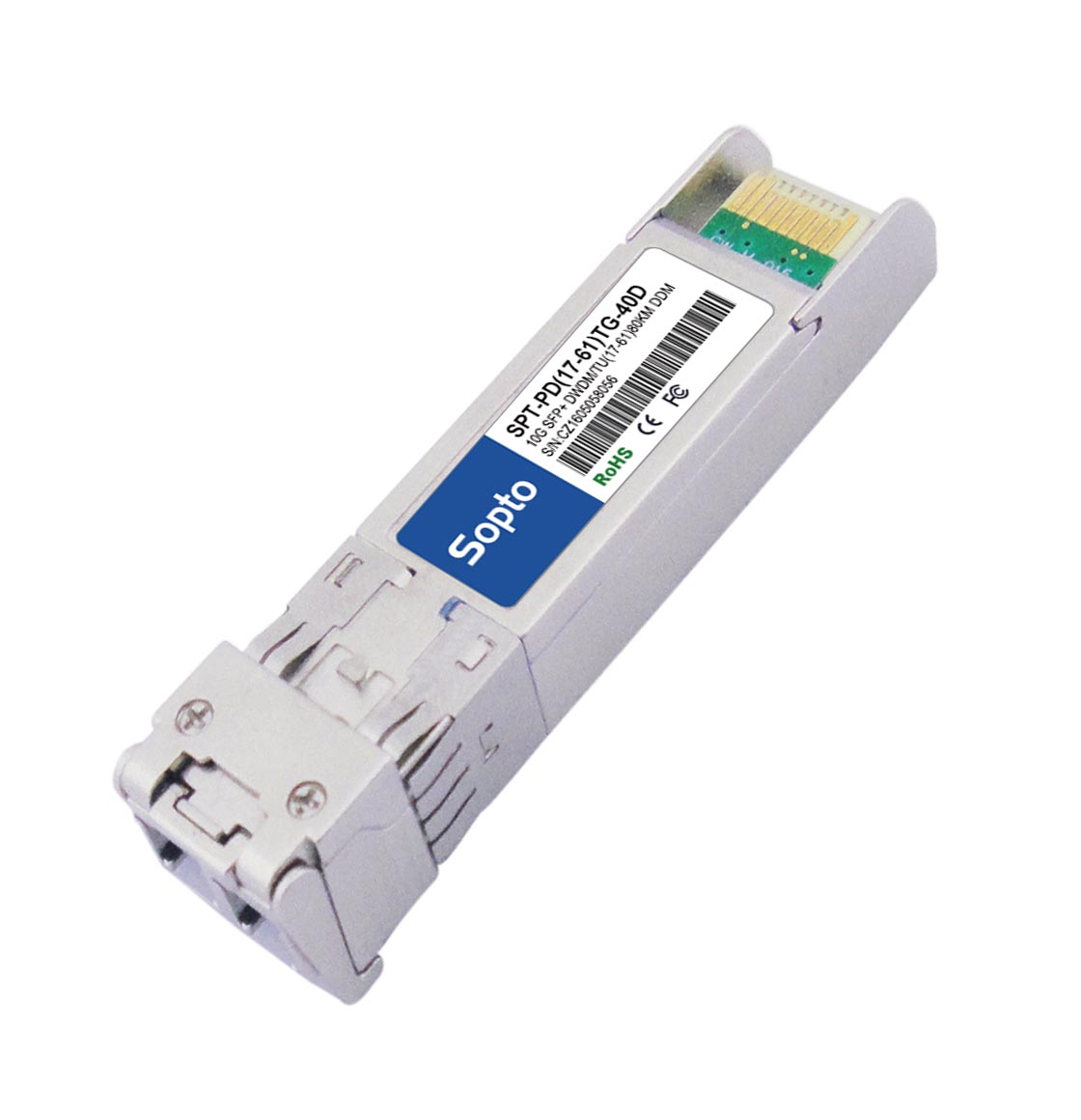

SPT-PD(17-61)TG-40D

10G 1270nm~1610nm 40km LC SM DWDM SFP+ Duplex DDM Transceiver Module

Parmeters

  • Form Factor : DWDM SFP+
  • Manufacture : Sopto
  • Data Rate : 10G
  • Place of Origin : Shenzhen, China
  • Transmission distance : 40km
  • Fiber Mode : Single Mode Fiber (SMF)
  • Wavelength : 1270-1610nm
  • Types of Interface : Dual LC Connector
  • Types of Laser : EML
  • Operating Temperature : -5 ºC~70 ºC
  • Modes of Communications : Duplex
  • Power Supply : + 3.3V Single power supply
  • Model : SPT-PD(17-61)TG-40D
  • Operating Humidity : 0%~90% RH no condensing
  • Extinction Ratio : 8.2~17dB
  • Receiver Sensitivity : <-24dBm
  • Saturated Optical Power : -3dBm
  • Hot Pluggable Times : >=200
  • Warranty : 1-3 Years
  • Typesof Multiplexing : DWDM
  • Power Consumption : <2W

Specifications

  • Compliant with SFF-8431, SFF-8432 and IEE802.3ae
  • 10GBASE-ER, and 2G/4G/ 8G/10G Fiber Channel applications.
  • Suitable for use in 100GHz channel spacing DWDM systems
  • Cooled EML transmitter and PIN receiver link length up to 40km
  • Low Power Dissipation 1.5W Maximum
  • Diagnostic Performance Monitoring of module temperature, supply voltages, laser bias current, transmit optical power, receive optical power
  • RoHS6 compliant and lead free

Testing Standards

All of our DWDM 10GBase-ER SFP+ Transceivers are compliant with ISO9001, TUV, CE, FCC, CAS, UL and RoHS certifications.

Application

  • 10GBASE-ER (with/without FEC)
  • 10G Fiber Channel (with/without FEC)

Description

40km DWDM SFP+ transceiver is a “limiting module”, designed for 10GBASE-ER, and 2G/4G/8G/10G Fiber- Channel applications. The transceiver consists of two sections: The transmitter section incorporates a cooled EML laser. And the receiver section consists of a PIN photodiode integrated with a TIA.
