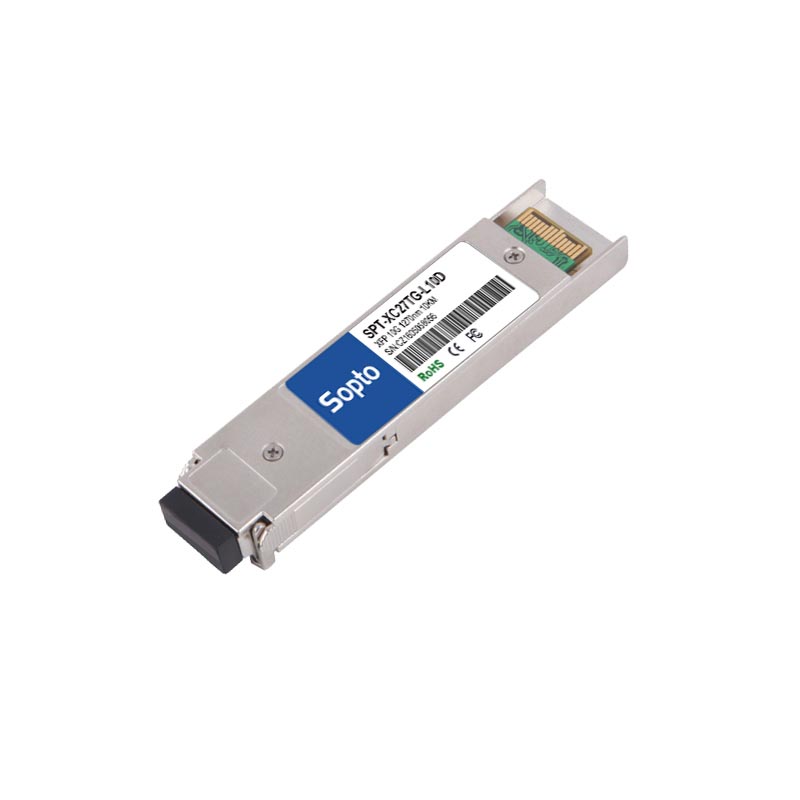

SPT-XC(27-33)TG-10D
10G 10km 1270nm~1330nm LC SM CWDM XFP Duplex DDM Transceiver Module
Parmeters
- Form Factor : XFP LR hot Pluggable Transceiver
- Manufacture : Sopto
- Data Rate : 10G/OC-192/STM-48
- Place of Origin : Shenzhen, China
- Transmission distance : 10km
- Fiber Mode : Single Mode Fiber (SMF)
- Wavelength : CWDM 1270-1330nm
- Types of Interface : LC
- Types of Laser : Uncooled DFB
- Operating Temperature : 0~70°C
- Modes of Communications : Duplex
- Power Supply : + 3.3V Single
- Model : SPT-XC(27-33)TG-10D
- Operating Humidity : 0%~90% RH no condensing
- Extinction Ratio : 6~17dB
- Receiver Sensitivity : <-25dBm
- Saturated Optical Power : -3dBm
- Hot Pluggable Times : >=200
- Warranty : 1-3 Years
- Typesof Multiplexing : CWDM
- Power Consumption : <2.5W
Specifications
- Supports 9.95Gb/s to 11.1Gb/s bit rates
- Hot-pluggable XFP footprint
- Maximum link length of 10km with SMF
- 4-Wavelengths Uncooled CWDM DFB laser from1270nm to 1330nm, with Step 20nm
- XFP MSA package with duplex LC connector
- No reference clock required
- Built-in digital diagnostic functions
Testing Standards
All of our 10G XFP Transceivers are compliant with ISO9001, TUV, CE, FCC, CAS, UL and RoHS certifications.
Application
- SDH STM I-64.1 at 9.953Gbps
- 10GBASE-LR/LW 10G Ethernet
- 1200-SM-LL-L 10G Fibre Channel
- 10GE over G.709 at 11.09Gbps
- OC192 over FEC at 10.709Gbps
- Other optical links, up to 11.1Gbps
Description
After test, this XFP transceiver works perfectly at 9.953Gbps (SDH STM-64 system). It is also good for 10GBase-LR/LW in 10G Ethernet as well as in Fibre Channel.
