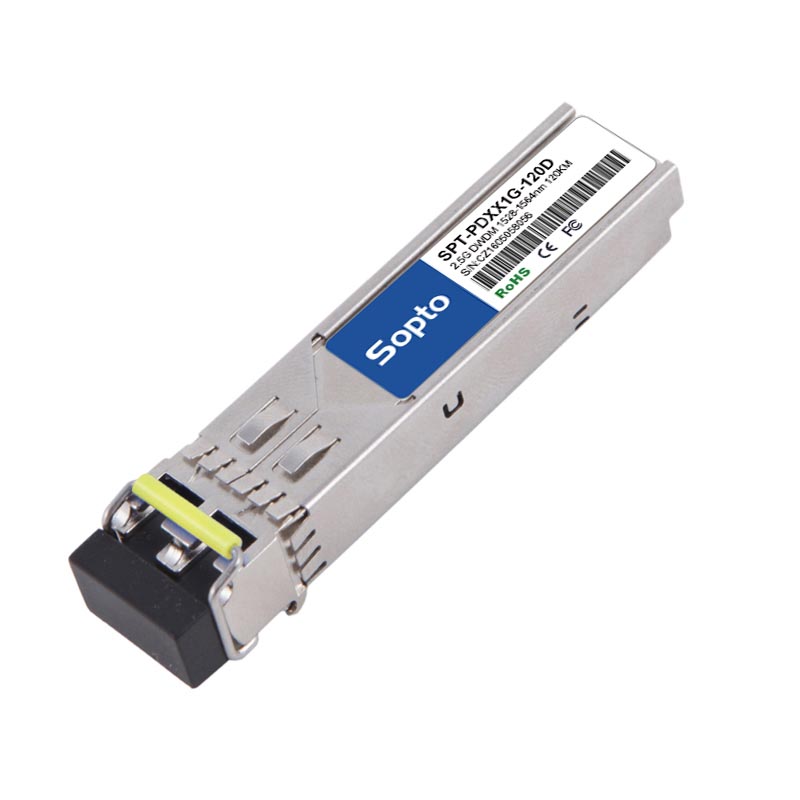

SPT-PDXX1G-120D
1.25G 1528~1564nm 120km LC SM DWDM SFP Duplex DDM Transceiver Module
Parmeters
- Form Factor : DWDM SFP Hot Pluggable
- Manufacture : Sopto
- Data Rate : 1.25G/1000Base
- Place of Origin : Shenzhen, China
- Transmission distance : 120km
- Fiber Mode : Single Mode Fiber (SMF)
- Wavelength : ITU Channel C-band or ITU Channel L-band both available
- Types of Interface : LC
- Types of Laser : DFB
- Operating Temperature : -5 ºC ~+70 ºC
- Modes of Communications : Duplex
- Power Supply : + 3.3V Single power supply
- Model : SPT-PDXX1G-120D
- Operating Humidity : 0%~90% RH no condensing
- Extinction Ratio : 8.2~17dB
- Receiver Sensitivity : -31~-24dBm
- Saturated Optical Power : -3dBm
- Hot Pluggable Times : >=200
- Warranty : 1-3 Years
- Typesof Multiplexing : DWDM
- Power Consumption : <1.3W
Specifications
- Wavelength selectable to C-band and L-band ITU-T grid wavelengths
- Suitable for use in 100GHz channel spacing DWDM systems
- DWDM SFP MSA Compliant
- Up to 2. 667Gb/s data rate
- Cold Start up Wavelength Compliance
- Diagnostic Performance Monitoring of module temperature, supply
- Voltages, laser bias current, transmit optical power, receive optical power,Laser temperature and TEC current
- Extended link budget with APD receiver technology
- OC48/STM-16 Long Reach 80km(1600 ps/nm), 120km(2400 ps/nm) Versions
- RoHS compliant and lead free
Testing Standards
All of our DWDM 1000Base SFP Transceivers are compliant with ISO9001, TUV, CE, FCC, CAS, UL and RoHS certifications.
Application
- SFP Transceivers for DWDM SONET/ SDH
- Ethernet IEEE 802.3ae
- Fiber Channel
Description
These Types of DWDM 1.25G SFP transceivers are designed for 120km transmission distance. In 1000Base Ethernet, they play an important role.
