3G 1550/1310nm 40km Video BIDI SFP Transceiver for SD-SDI, HD-SDI and 3G-SDI

1550nm 1G fiber optic transceiver

SPT-PB53V3-L40D

3Gbps Video BIDI SFP Optical Transceiver, 40km Reach
          1550nm TX / 1310 nm RX

 Features
HD-SDI Bi-Directional SFP Transceiver available
SD-SDI Bi-Directional SFP Transceiver available
3G-SDI Bi-Directional SFP Transceiver available
SMPTE 297-2006 Compatible.
Metal enclosure for Lower EMI
1550nm DFB laser and PIN photo detector
Supports video pathological patterns for SD-SDI, HD-SDI and 3G-SDI
Compliant with SFP MSA and SFF-8472 with simplex LC receptacle
Digital Diagnostic functions available through the I2C interface
Compatible with RoHS
+3.3V single power supply
Operating case temperature:
Standard: 0 to +70°C
Industrial: -40 to +85°C

 Applications
SMPTE 297-2006 Compatible Electrical-to-Optical Interfaces.
HDTV/SDTV Service Interfaces.

 Description
The video series transceivers are high performance, cost effective modules for simplex video transmission application over single mode fiber.
The transceiver is designed to transmit/receive data rates from 50Mbps to 2.97Gbps and is specifically designed for robust performance in the presence of SDI pathological patterns for SMPTE 259M, SMPTE 344M, SMPTE 292M and SMPTE 424M serial rates. The module is fully compliant with SMPTE 297M-2006.
The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

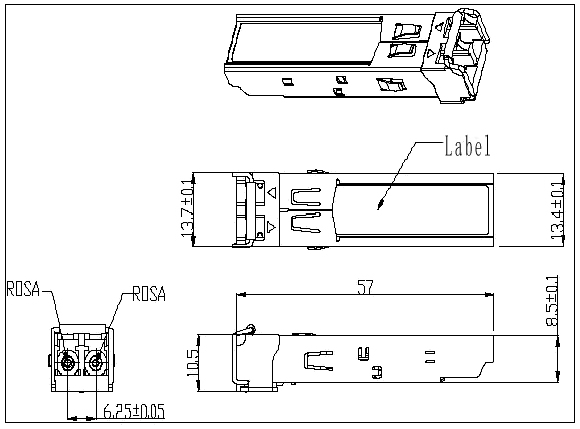

Mechanical Dimensions

video sfp

Orderinginformation

Part Number

Product Description

SPT-PB53V3-L40

1550nm,3Gbps,40km,0ºC~+70ºC

SPT-PB53V3-L40D

1550nm,3Gbps,40km,-40ºC~+85ºC,DDM
